RLY(RLQ) Series Oil(gas) Burnt Hot Air Furnace

Product Description

The fuel is burnt at firebox and the high temperature is produced. The quantity of heat will conduct to air to be heated through heat exchange device. Through heat exchange, the temperature of air is dropped to less than 250.C and the air will be discharged. The air to be heated is sent to hot air furnace through distribution blow fan. After absorbed heat to the rated value, the air will be sent from the vent of hot air. When the temperature of hot air reaches the rated upper limit, the burner can stop or turn to small fire automatically. When the temperature of hot air drops to the rated low limit, the burner can burn or turn to big fire automatically. For the hot air furnace, it has two types: direct-burnt type and indirect-burnt type based on the heating way.

Application

The furnace is widely used in Metal surface covering, coating the Medicine, Grain processing, Foodstuff, Wood processing and Textile, printing and dyeing in Chemical industry, Automobile and so on.

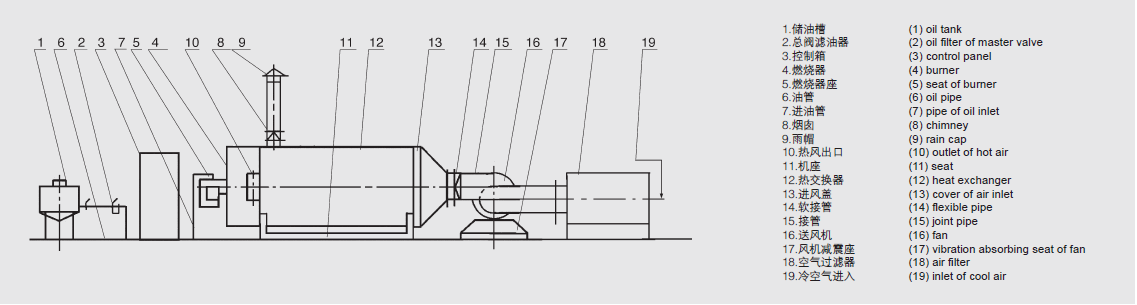

Installation drawing

Product parameters

Spec.	Heat capacity provided		Heating temperature ℃	Diirect-fired heat efficiency	Indirect-fired heat efficiency	Oil consumption kg/h	Air consumption m3/h
Spec.	104kg/h	104kcal/h	Heating temperature ℃	Diirect-fired heat efficiency	Indirect-fired heat efficiency	Oil consumption kg/h	Air consumption m3/h
RLY/RLQ-1	4.2	1	60~500	≥ 95%	≥ 75%	1.05	1.3
RLY/RLQ-4	16.8	4	60~500	≥ 95%	≥ 75%	4.2	5.2
RLY/RLQ-10	41.8	10	60~500	≥ 95%	≥ 75%	10.5	13
RLY/RLQ-20	84	20	60~500	≥ 95%	≥ 75%	21	26
RLY/RLQ-30	125	30	60~500	≥ 95%	≥ 75%	31.5	39
RLY/RLQ-40	167	40	60~500	≥ 95%	≥ 75%	42	52
RLY/RLQ-60	251	60	60~500	≥ 95%	≥ 75%	63	78
RLY/RLQ-80	334	80	60~500	≥ 95%	≥ 75%	84	104
RLY/RLQ-100	418	100	60~500	≥ 95%	≥ 75%	105	130
RLY/RLQ-120	502	120	60~500	≥ 95%	≥ 75%	126	156
RLY/RLQ-180	752	180	60~500	≥ 95%	≥ 75%	189	234
RLY/RLQ-200	836	200	60~500	≥ 95%	≥ 75%	210	260
RLY/RLQ-300	1254	300	60~500	≥ 95%	≥ 75%	315	390
RLY/RLQ-400	1672	400	60~500	≥ 95%	≥ 75%	420	520
RLY/RLQ-500	2090	500	60~500	≥ 95%	≥ 75%	525	650
