ＭＣSeries Pulse Dust Filter With Cloth Bag (Bag Filter)
Keywords:
Category: Assistant machine
Product DescriptionOn the basis of MC-Ispec, we develop the MC- II Square shape pulse cloth bag filter .Except the features that it has high efficiency dust collecting ,big capacity of air rate ,stable performance,easy to operate …

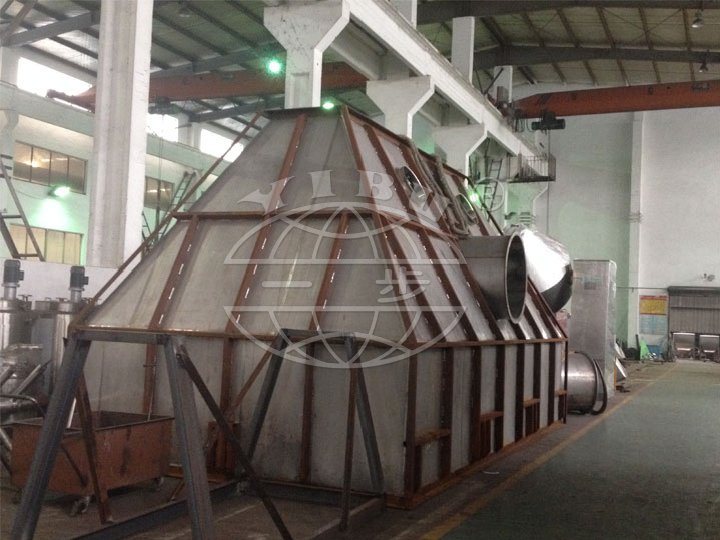

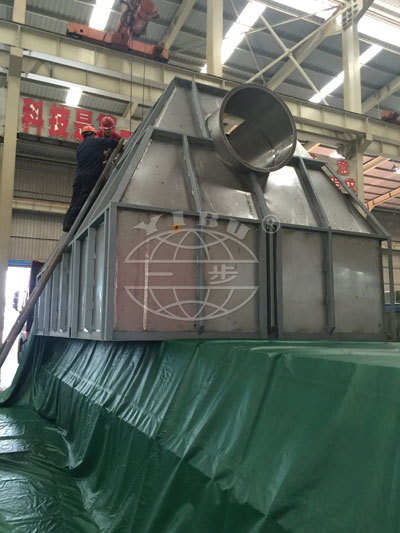

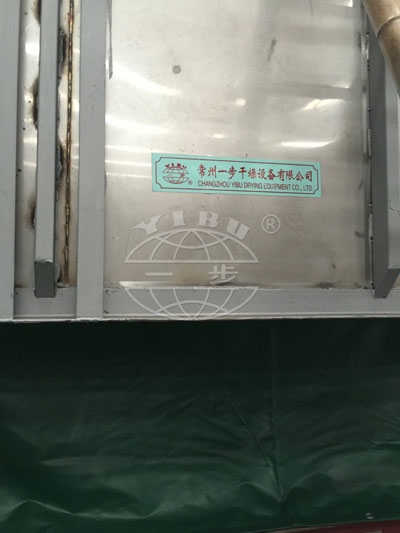

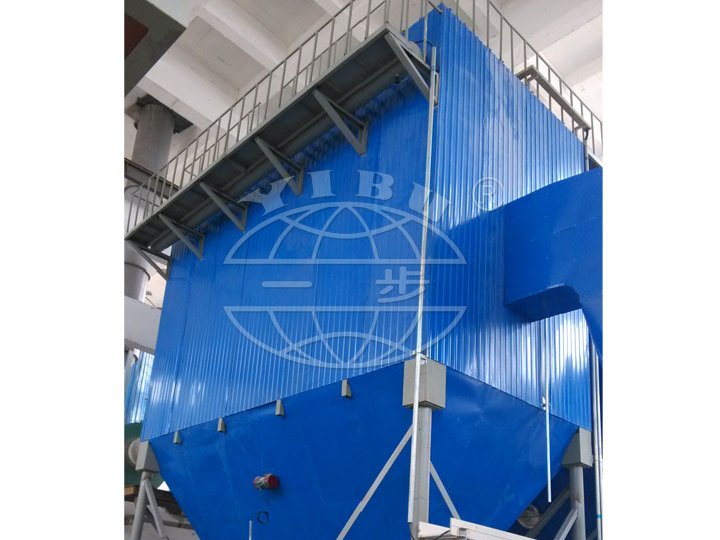

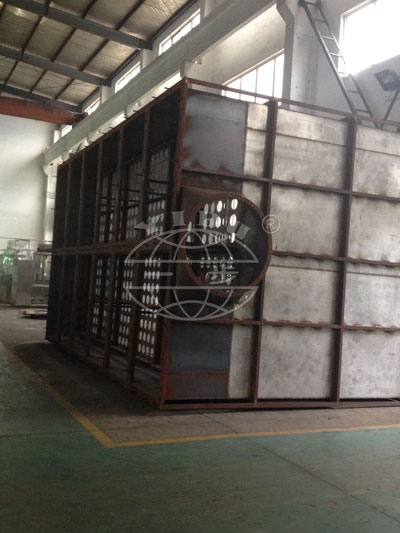

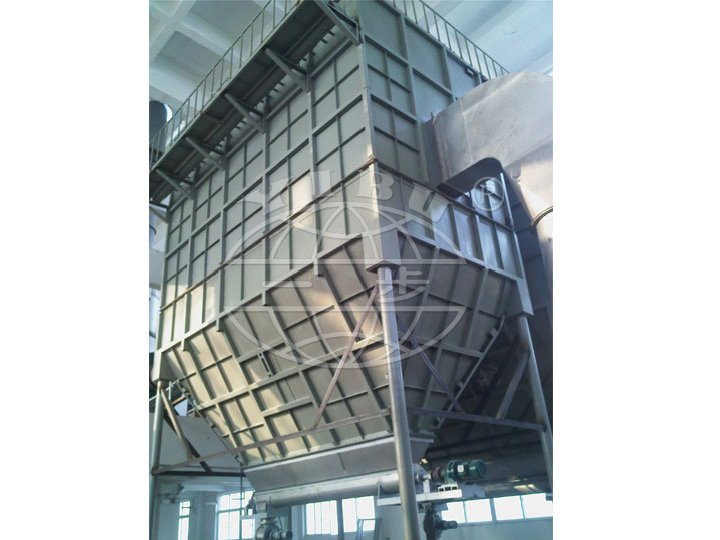

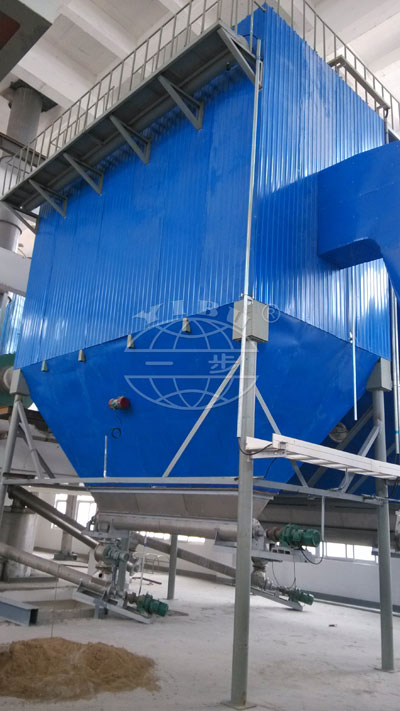

Detail Picture
ＭＣSeries Pulse Dust Filter With Cloth Bag (Bag Filter)
Product Description
On the basis of MC-Ispec, we develop the MC- II Square shape pulse cloth bag filter .
Except the features that it has high efficiency dust collecting ,big capacity of air rate ,stable performance,easy to operate and maintain it and so on .compared with MC-I , the usage of MC-II is more better .for example : MC is not easy to let the powder stay, and its application is very wide and so on . It is is widely used for the ventilation, dust removing and powder restoration in the grain, food, feed, metallurgical, chemical, building material, medical and other industries.
It is used for different dryer ,mixer ,granulator or relative machine to remove the dust .
Product parameters
|
parameters\spec |
MC24 |
MC36 |
MC48 |
MC60 |
MC72 |
MC84 |
MC96 |
MC120 |
|
|
Filtering area(m2) |
18 |
27 |
36 |
45 |
54 |
63 |
72 |
90 |
|
|
Filtering bag number(piece) |
24 |
36 |
48 |
60 |
72 |
84 |
96 |
120 |
|
|
Filtering air speed(L/m2.s) |
20-40 |
20-40 |
20-40 |
20-40 |
20-40 |
20-40 |
20-40 |
20 |
|
|
Filtering air volume(m3/h) |
1300-2600 |
1950-3900 |
2600-5200 |
3240-6480 |
3900-7800 |
4550-9100 |
5200-10500 |
6500 |
|
|
Max. Overall dimension |
L |
1000 |
1400 |
1800 |
2200 |
2600 |
3000 |
3560 |
4360 |
|
W×H |
1450×3700 |
1450×3850 |
1450×4100 |
||||||
|
Dust remover |
Pulse valve number |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
20 |
|
Compressed air consumption (m3) |
0.07 |
0.11 |
0.15 |
0.18 |
0.22 |
0.25 |
0.29 |
0.37 |
|
|
Compressed air pressure |
5-7 |
||||||||

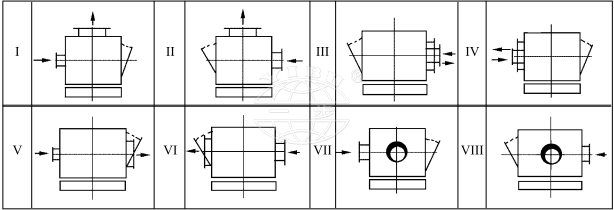

Schematic of installation

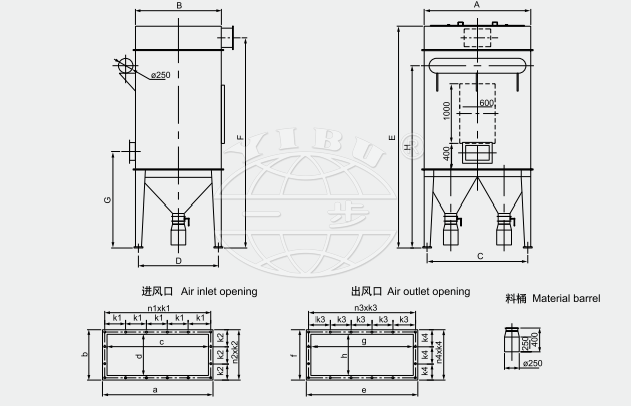

Main Dimension
|
parameter\spec |
MC24 |
MC36 |
MC48 |
MC60 |
MC72 |
MC84 |
MC96 |
MC120 |
|
A |
1000 |
1400 |
1800 |
2200 |
2600 |
3000 |
3560 |
4360 |
|
B |
1450 |
|||||||
|
C |
780 |
1180 |
1600 |
2000 |
2400 |
1400+1400 |
1670+1670 |
2080+2080 |
|
D |
1230 |
|||||||
|
E |
3700 |
3850 |
4100 |
|||||
|
F |
3500 |
3600 |
3850 |
|||||
|
G |
1700 |
1750 |
2000 |
|||||
|
H |
3040 |
3090 |
3300 |
|||||
|
a |
476 |
576 |
876 |
876 |
1076 |
676 |
776 |
876 |
|
b |
336 |
376 |
||||||
|
c |
400 |
500 |
800 |
800 |
1000 |
600×2 |
700×1 |
800×2 |
|
d |
260 |
300 300×2 |
||||||
|
e |
576 |
576 |
876 |
876 |
1076 |
1276 |
1326 |
1436 |
|
f |
276 |
376 |
||||||
|
g |
500 |
500 |
800 |
800 |
1000 |
1200 |
1250 |
1360 |
|
h |
200 |
300 |
||||||
|
k1×n1 |
110×4 |
108×5 |
120×7 |
120×7 |
120×7+100×2 |
110×4+100×2 |
110×5+95×2 |
120×7 |
|
k2×n2 |
150×2=300 |
113.3×3=340 |
||||||
|
k3×n3 |
108×5 |
108×5 |
120×7 |
120×7 |
120×7+ |
124×10 |
120×9+ |
120×10+ |
|
k4×n4 |
120×2=240 |
113.3×3=340 |
||||||
|
Dia .of the flange at the dust discharge port |
150 |
150 |
150 |
150 |
150 |
200 |
200 |
200 |
-
ＭＣSeries Pulse Dust filter with cloth bag (bag filter) -
ＭＣSeries Pulse Dust filter with cloth bag (bag filter) -
ＭＣSeries Pulse Dust filter with cloth bag (bag filter)
None...
News
- 2024-06-08 > Exhibition Invitation |ACHEMA 2024, Germany
- 2019-06-15 > P-MECH CHINA 2019 YIBU BOOTH NO: N3B10a
- 2019-04-15 > YIBU will attend the 57th CIPM Exhibition held in Changsha in Hunan province
- 2018-12-28 > Actived carbon particle mesh belt dryer made for Ingrevity
- 2018-03-10 > big spin flash dryer and spray dryer delivery to pakistan and Italy customer on time
- 2017-12-29 > two sets high speed centrifugal spray dryers and three sets of drum dryre delivered to Indonesia
- 2017-08-24 > one set of LPG-100 spray dryer is delivered to America
- 2017-08-24 > Five layers mesh belt dryer is sucessfully delivered to Manila(Philippines)
- 2017-04-05 > Exhibition interpack 2017 in Dusseldorf In Germany
- 2016-11-23 > The 18th International Exhibition in Moscow
Products
-
RNG Waste Heat Recovery System
-

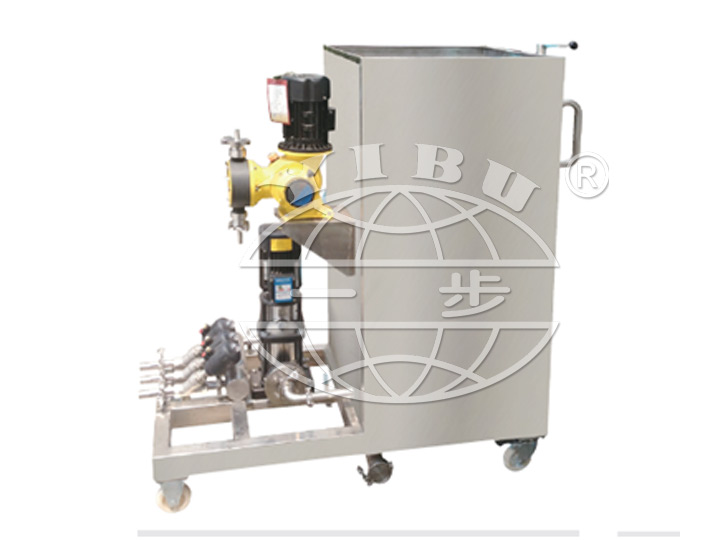

JQX series Movable Cleaning Pump Station -
WNG Sereis Hot Pump Dryer
-
RLY(RLQ) Series Oil(gas) Burnt Hot Air Furnace
-

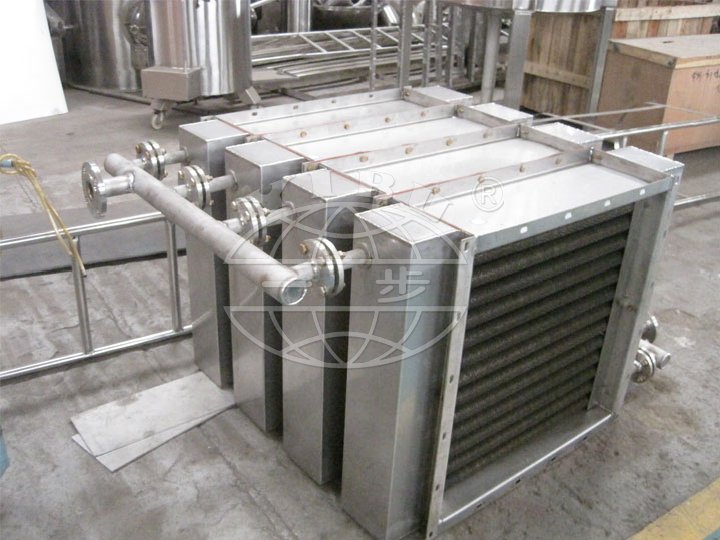

SQR Series Heat Exchanger -
ＭＣSeries Pulse Dust Filter With Cloth Bag (Bag Filter) -

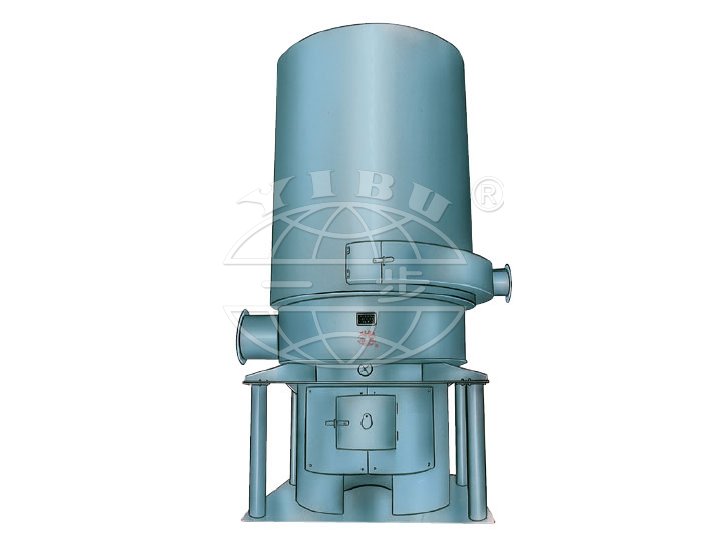

JRF Series Coal Burnt Hot Air Furnace
