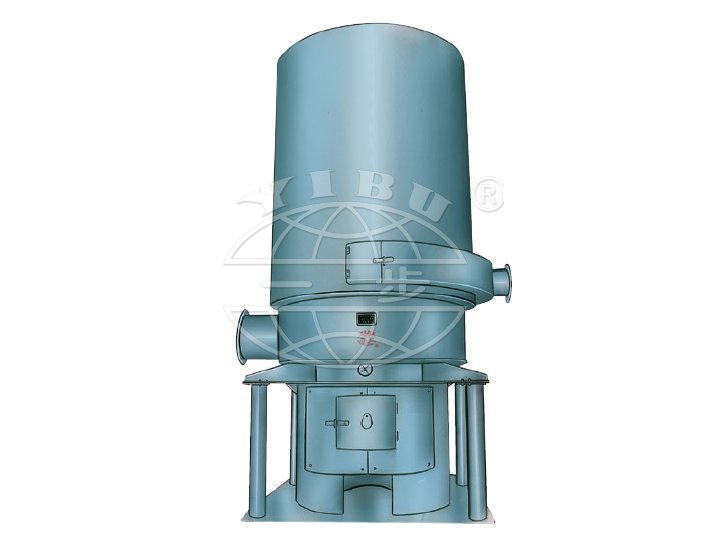

JRF Series Coal Burnt Hot Air Furnace

Principle
The furnace combines the combustion with the heat exchange(if it is indirect-burnt type ), using the latest indirect heating technology that the heat exchange is taken place at the position of the high temperature in the furnace. The smoke and the air go into the different channels, without any pollution for the heating. The heat efficiency rate is high (up to 60 - 75%). The temperature increase is fast. The furnace is small in size, easy in the installation, reliable in the operation and low in the price (making a comparison with one ton boiler, the price of this system is only half price of the heating system for the boiler.).

Applications
The furnace is a common heating air device , it is equiped  with different drying equipment .for this furnace , it can combine the burning with heat exchanging together . The heat exchange is taken place at the position of the high temperature in the furnace.The furnace is widely used for various dryers as heating system in chemical ,foodstuff, pharmaceutical and so on indurstry

Features
The furnace uses the high temperature resistant method so that its life is much longer than the life of the pipe arrangement hot air furnace. The furnace uses the smoke and air longitudinal splashing heat radiation sheets and the negative pressure smoke elimination mode. There is no dust collected on the heat exchange position. There is no need to carry out the cleaning. The heat feature is stable. Various coal and wood can be used as the fuel. The furnace is equipped with the air leading device and the combustion is complete. All the technical and economic indexes of the furnace have reached the advanced level at home.

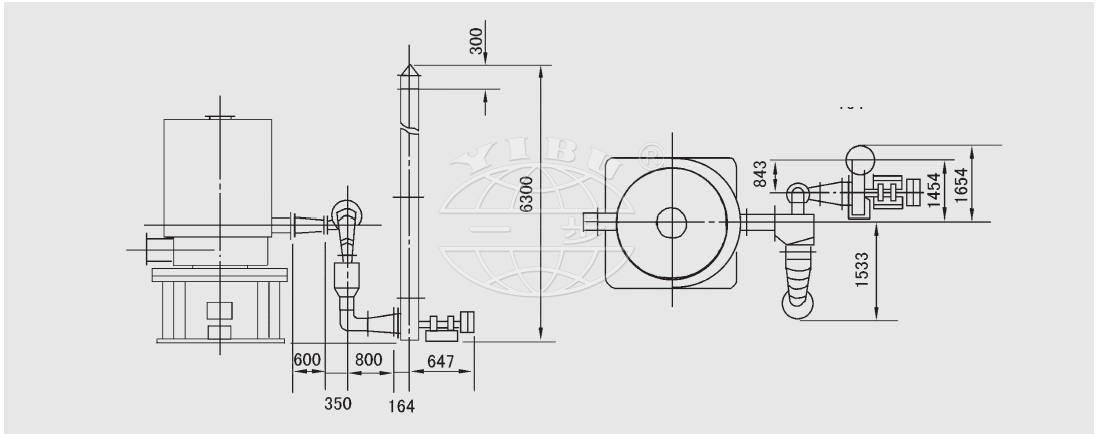

Installation drawing

Technical parameters

Cautions
◆  The environmental datum temperature standard takes 18±2.C. The thermal value for the coal takes 5000kcal/kg for the calculation.
◆  The hot air temperature in the table is decided according to the air output. The maximum hot air temperature for JRF4 spec hot air furnace can be up to more than 200.C. The maximum hot air temperature for JRF5 and JRF6 specs can be up to more than 300.C (for the special manufacturing furnace, the maximum temperature can be up to more than 500.C.). The temperature can be adjusted according  to the demand.
◆  Hot air furnace chimney height: for JRF4 spec, it is 3 - 5 m; and for JRF5 and JRF6 specs, they are 5 - 8 m.
◆  For the overall dimension corresponding positions in the above table, please see the diagram for installing the hot air furnace.
◆  The fire-resistant layer on the internal wall at the low section of the furnace hearth begins at the furnace wall. Its height: for JRF 4-4, it is 0.5m; The fire-resistant layer can be installed on site.
◆  JFR6 spec is the chain-furnace arrangement-spec combustion device.
