Description

WYG series pressure spray dryer is different from the conventional vertical type pressure spray dryer, the rectangular tower body is lying on the ground, and the spray gun  feeds the liquid material  from one side of the tower and discharge the material from the other side of the tower . it can make the liquid material atomize with the high pressure pump and fully contact with  the hot air on the same side, under this condition ,and the material can  completely dried in a short time. The finished products drop on the bottom plate by gravity, the material on the plate enters Discharging port through scraper.

◆The finished product has good flow ability ,small residual .the content is by manual , stability is good , the size of particle is uniform , high yield for the finished product.
◆ Widely used in the egg yolk protein, blood plasma, foodstuff , chemical industry, etc.

Features:

The size of the particle is uniform, high yield for the finished product ; less waste, less loss;
The machine has no elbow pipe, no phenomenon of material blocking caused by the elbow pipe;
The system has small resistance, and it can use low pressure blower, which may reduce energy consumption;
The machine covers a compact area, and the suction fan, blast fan and heater can be put on the top of the tower which may reduce the occupied area, and the height of the equipment can decreased by more than half  than the one of the vertical type of pressure spray dryer.

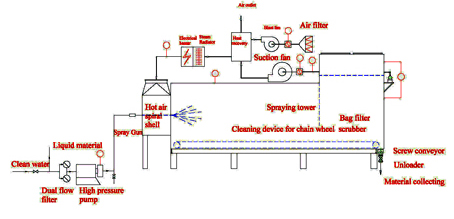

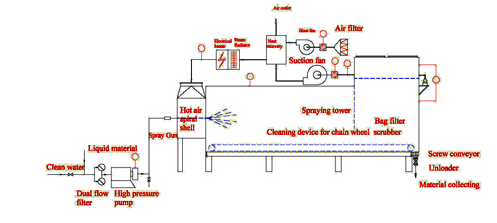

Installation Diagram
