HS Series laboratory hopper mixer (laboratory bin mixer)
Keywords:
Category: Mixer
ApplicationThe machine can be applied to the mixing for dry particles with different components, powder and granule, powder and powder in the laboratory, which is an ideal equipment for groping optimum parameters of material mixing. And …
Detail Picture
HS Series laboratory hopper mixer (laboratory bin mixer)
Application
The machine can be applied to the mixing for dry particles with different components, powder and granule, powder and powder in the laboratory, which is an ideal equipment for groping optimum parameters of material mixing. And it’s widely used in pharmaceutical, chemical, food and other industries.
The whole machine can be moved, making it convenient and flexible to use. The material hopper (bin) is installed in cantilever way, one machine can be figured with different bin to meet the demands of different mixing batch with muti-specifcations of raw material .besides, it is convenient to replace and clean. Mixing hopper and rotary axis form a certain angle, which make the machine achieves very high mixing effect. The machine adopts PLC automatic control technology, so it can complete the mixing work according to the parameters set.
Installation Instruction

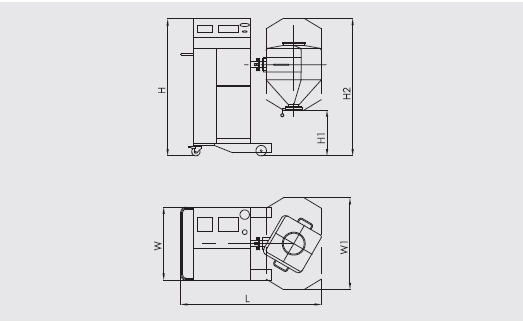

Technical parameters:
|
Type |
Size of the structure |
Hopper |
The Speed of main shaft RPM |
Total Speed |
|||||
|
H |
H1 |
H2 |
W |
W1 |
L |
||||
|
HS30 |
1000 |
400 |
1050 |
450 |
700 |
1200 |
5~30 |
3~25 |
0.55 |
|
HS100 |
1300 |
450 |
1350 |
700 |
900 |
1600 |
50~100 |
3~20 |
0.75 |
None...
None...
