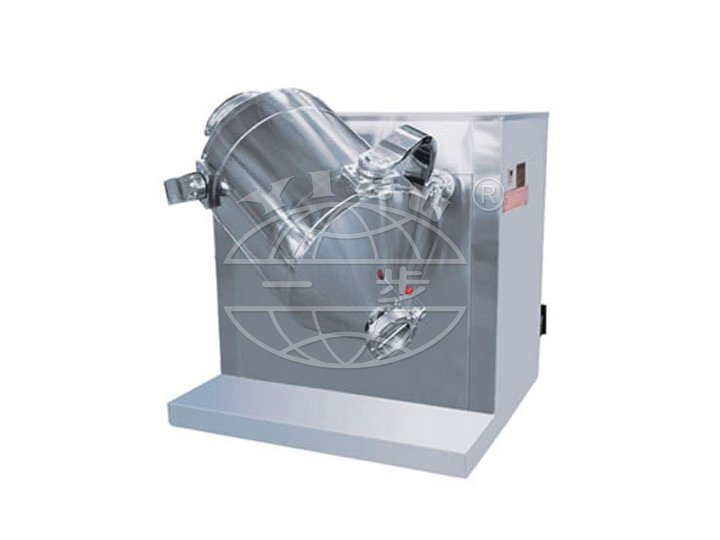

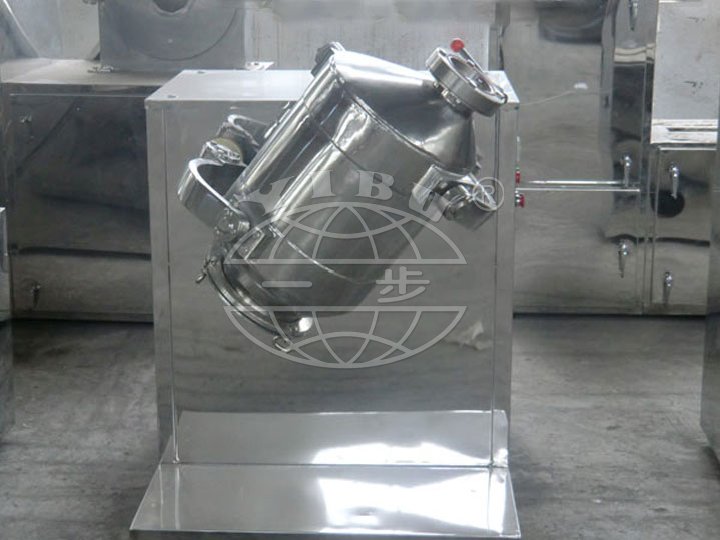

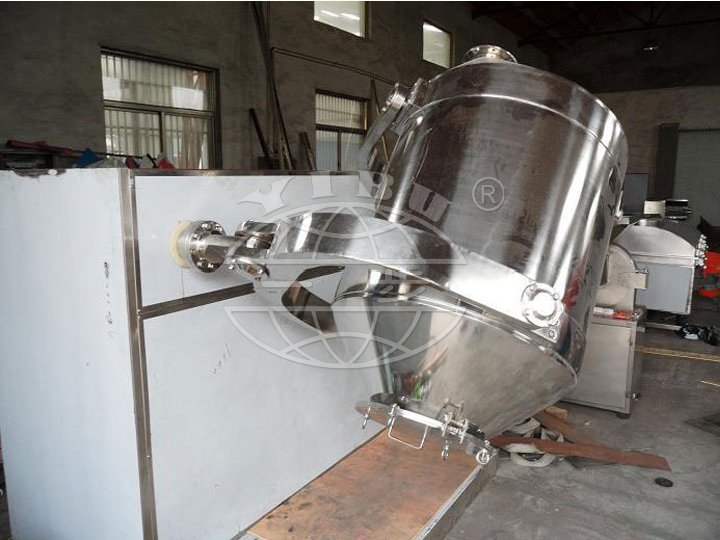

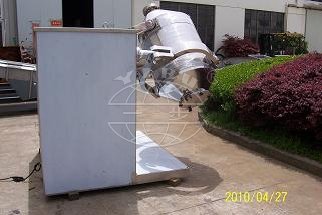

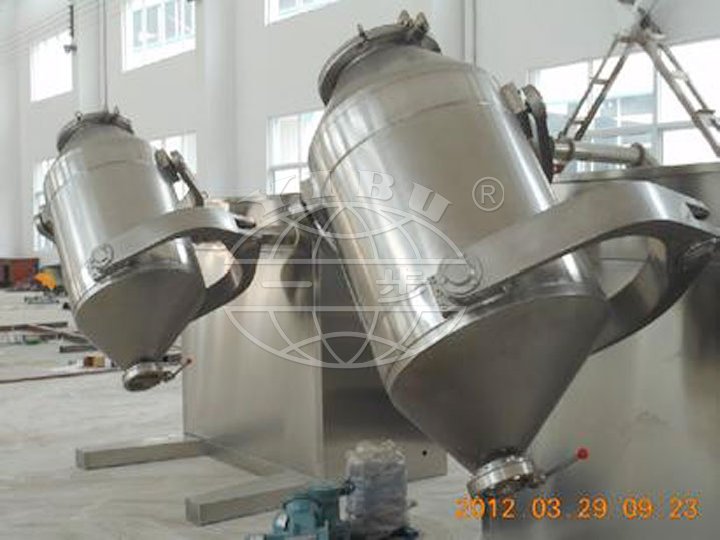

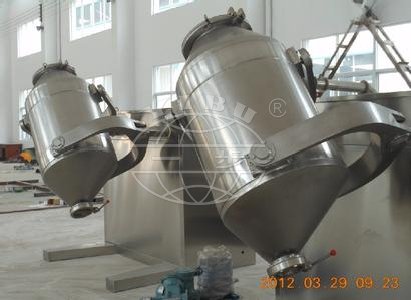

SYH Series Three Dimensions Mixer （Three Dimension Mixing Machine）

Features
1.The barrel for charging the materials is driven by the driving shaft. The barrel body carries on the repeated level movement, rotation, turning and other complex movements so that the materials will carry out the three dimensions and complex movements along the barrel body so as to realize the various movements of the materials. Through disseminating, gathering, agglomerating and mixing to realize uniform mixing.
2. Control system has more choices ,such as push button ,HMI+PLC and so on.
3. For the feeding system , it can choose vacuum feeding system or negative feeding system or others.

Application
The mixing barrel of the machine moves in multi-direction. For the materials, there is no centrifugal function, without the specific gravity segregation and the layer division. For each of build-up phenomenon, there is the remarkable weight rate. The mixing rate is high. The machine is the desired one of various mixers at present. The material charge rate of barrel is big. Maximum rate can be up to 90% (while normal mixer has only 40-50% of charge rate.). It is high in efficiency and short in mixing time. The barrel adopts arc shape connections and its well polished. The machine is used for mixing the powder state and grain state materials to achieve high uniformity in the pharmaceutical, chemical, food, light-industry, electronic, mechanical, metallurgical, nation defense industries and other science and technology institutes.

Technical datas

spec	SYH-5	SYH-15	SYH-50	SYH-100	SYH-200	SYH-400	SYH-600	SYH-800	SYH-1000	SYH-1200	SYH-1500	SYH-2000
volume of barrel(L)	5	15	50	100	200	400	600	800	1000	1200	1500	2000
charge volume (L)	4.5	13.5	45	90	180	360	540	720	900	1080	1350	1800
charge weight(kg)	1.5-2.7	4-8.1	15-27	30-54	50-108	100-216	150-324	200-432	250-540	300-648	400-810	500-1080
rotation speed of main shaft(r/min)	0-20	0-20	0-20	0-20	0-15	0-15	0-13	0-10	0-10	0-9	0-9	0-8
motor power(Kw)	0.25	0.37	1.1	1.5	2.2	4	5.5	7.5	11	11	15	18.5
size LxWxH(mm)	600× 1000 ×1000	800× 1200 ×1000	1150× 1400 ×1300	1250× 1800 ×1550	1450× 2000 ×1550	1650× 2200 ×1550	1850× 2500 ×1750	2100× 2650 ×2000	2150× 2800 ×2100	2000× 3000 ×2260	2300× 3200 ×2500	2500× 3600 ×2800
weight(kg)	100	200	300	800	1200	1200	1500	1700	1800	2000	2400	3000
