Detail Picture

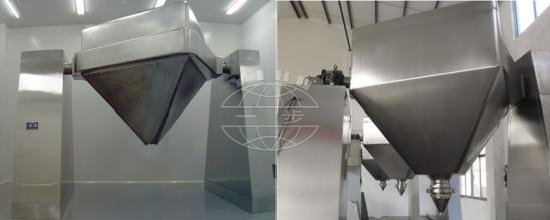

FZH Seires Square-Cone Mixer (Square -Cone Mixing Machine)
Working princileFZH Seires Square-Cone Mixer (Square -Cone Mixing Machine),Materials are charged into a closed square-cone mixing barrel, the symmetrical axes of hopper and the axes of rotating shaft form an included angle, materials with different constituents are strenuously rolling over in the closed hopper and producing high shear to achieve the best effect of mixing.
1.The whole machine features novel design, compact structure, and good appearance, the evenness of mixing reaches 99% ,and the volume charge coefficient reaches 0.8.
2.Low rotating height, smooth running, reliable performance, easy operation.
3.Highly polished inner and outer surfaces of the barrel, no dead comer, easy to discharge materials, easy to clear, no cross contamination. Confining to the requirement of GMP.
4.The whole machine features novel design, compact structure, and good appearance, the evenness of mixing reaches 99% ,and the volume charge coefficient reaches 0.8.
5.Low rotating height, smooth running, reliable performance, easy operation.
6.Highly polished inner and outer surfaces of the barrel, no dead comer, easy to discharge materials, easy to clear, no cross contamination. Confining to the requirement of GMP.
7. Control system has more choices, such as push button ,HMI+PLC and so on。
8. The feeding system for this mixer can be by manual or pneumatic conveyor or vacuum feeder or screw feeder and so on
FZH Seires Square-Cone Mixer (Square -Cone Mixing Machine) is a novel material mixer extensively used in the pharmaceutical, chemical, metallurgical, food, light and feed industries. This machine can mixer powder or granules very evenly so that the mixed materials can reach the best effect
Technical parameters
|
spec |
FZH-300 |
FZH-500 |
FZH-1000 |
FZH-1500 |
FZH-2000 |
FZH-3000 |
FZH4000~8000 |
|
|
total volume (L) |
300 |
500 |
1000 |
1500 |
2000 |
3000 |
4000~8000 |
|
|
charge volume (L) |
210 |
350 |
700 |
1050 |
1400 |
2100 |
2800~5600 |
|
|
charge weight (kg) |
150 |
250 |
500 |
750 |
1000 |
1500 |
2000~8000 |
|
|
rotation speed of main shaft (r/min) |
14 |
13 |
12 |
10 |
8 |
6 |
4 |
|
|
motor power (kw) |
1.5 |
2.2 |
4 |
5.5 |
7.5 |
11 |
16.5~ |
|
|
inlet diameter(mm) |
380 |
380 |
560 |
560 |
560 |
560 |
Upon the order |
|
|
outlet diameter(mm) |
200 |
200 |
200 |
200 |
200 |
200 |
Upon the order |
|
|
overall dimenson（mm） |
(L) |
1850 |
2200 |
2800 |
2915 |
3800 |
Upon the order |
Upon the order |
|
(W) |
1280 |
1550 |
2000 |
2300 |
2500 |
Upon the order |
Upon the order |
|
|
(H) |
1970 |
2260 |
2850 |
2950 |
3200 |
Upon the order |
Upon the order |
|
|
weight (kg) |
500 |
700 |
1000 |
1500 |
2000 |
3000 |
Upon the order |
|
-
FZH SeiresSquare-cone Mixing machine(Square -cone mixer) -
FZH SeiresSquare-cone Mixing machine(Square -cone mixer) -
FZH SeiresSquare-cone Mixing machine(Square -cone mixer) -
FZH SeiresSquare-cone Mixing machine(Square -cone mixer) -
FZH SeiresSquare-cone Mixing machine(Square -cone mixer)
