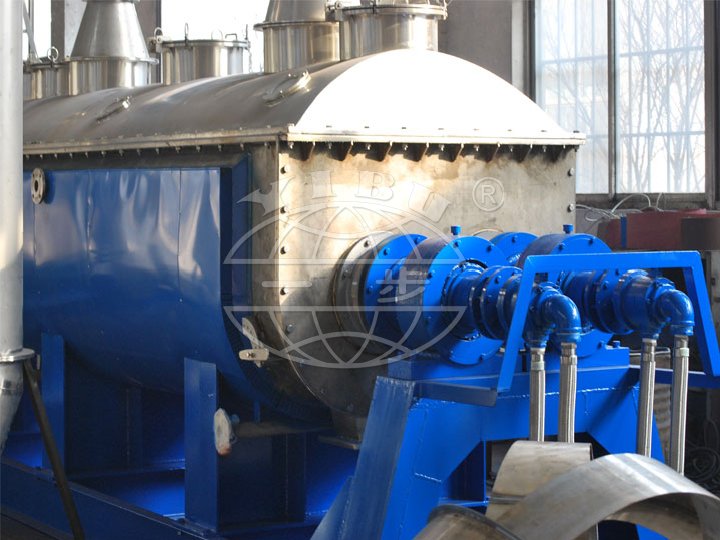

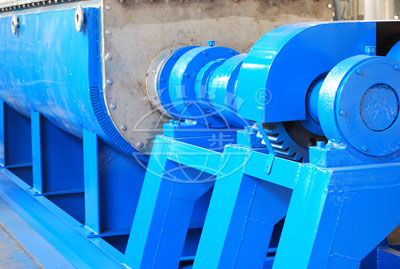

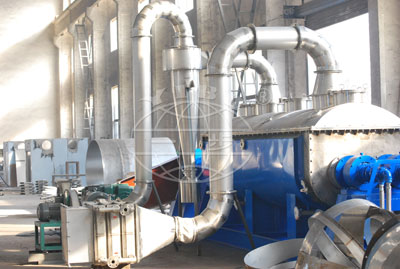

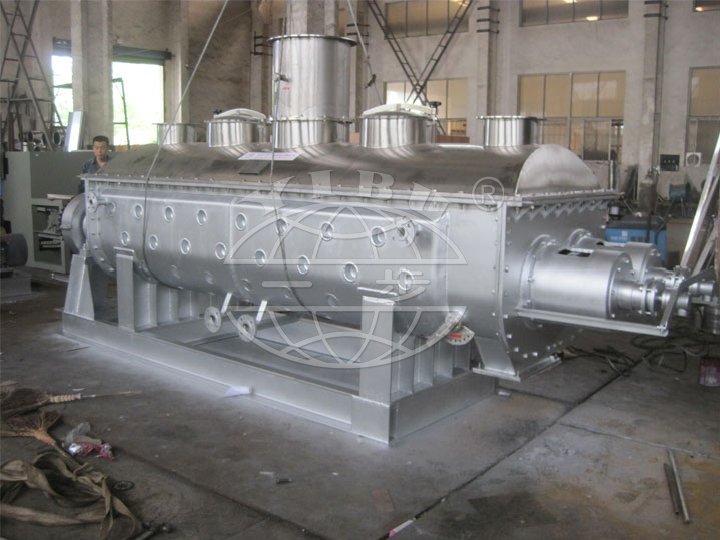

QJ Series Hollow Blade Dryer( Hollow impeller Dryer)(Paddle Dryer)



Description

• QJ Series Hollow Blade Dryer( Hollow impeller Dryer)(Hollow Paddle Dryer) is Applicable for drying or cooling of paste, particle, powder and slurry state of material, perform the process of drying, cooling, heating, sterilizing, reacting and combustion under low temperature. The special stirring and heating transferring blade, makes high heat transferring efficiency, and provide self-cleaning function. The special chock shaped stirring and heat transferring blade has high heating efficiency and self-cleaning function of the heating transferring surface.

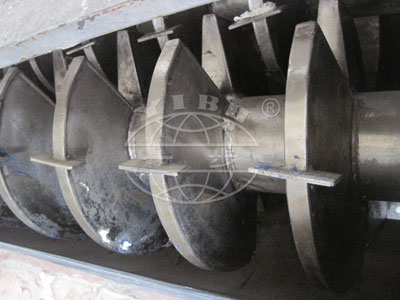

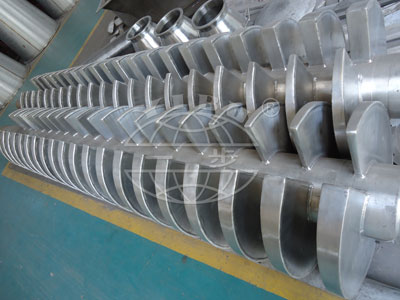

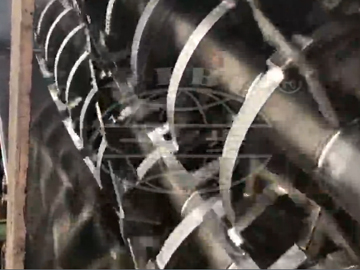

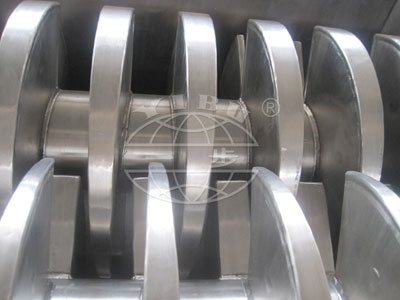

•  Hollow chock shaped blades are concentrated on the hollow shaft. Heat media flow through the blade from the hollow shaft. The heat transferring area in the effective volume is very high. The temperature range of heating media is -40 ℃ to 320 ℃ . It might be steam, or liquid state, such as steam, thermal oil etc. Indirect heating, there's no heat carried out by air. All heat is utilized for to drying the material except the lost of heat insulation layers. The surface of chock shaped blade has self-cleaning function. The relative movements of the product particles and the chocked shaped surface might clean the material attached to the chock shaped surface, so to keep the cleanliness of heat transferring surface during working. The shell of hollow blade dryer is Ω shape. 2 or 4 pieces of hollow stirring shaft are usually equipped in the shell. To avoid any leakage of material, there're sealed terminal cover and top cover with the shell. The heat transferring media flow through the rotation connector, jacket's shell and hollow stirring shaft. To ensure best transferring effect, the hollow stirring shaft adopts different interior structure in accordance with different heating media.



Features
1. The heat consumption of blade is low: No heat carried out by the air because of indirect heating; there's no heat insulation layer with the exterior wall of the dryer. It consumes 1.2 kg of steam to evaporate 1kg of water for to drying slurry state of material.
2. The cost of the blade dryer is low: The unit effective volume has very large heat transferring surface, so the processing time is shorted, the size of the equipment becomes small. The building area and place are sharply decreased.
3. The range of material to be processed is wide: Heat sensitive material and the materials to be processed under high temperature might be processed with different heating media. The normal media are: steam, thermal oil, hot water and chill water. It might be continuous or batch operation, widely used in many areas.
4. The pollution is less: Without any carrying air, very little powder is carried out. The solvent evaporated is very few, it easy to be processed. For the material that might cause pollution or the solvent to be recovered, it might adopt sealed circulation.
5. The operation cost is low: 1hour/day/operator is enough for normal operation. Low stirring speed and reasonable structure, the worn amount is few, and the maintenance fee is low.
6. Steady operation: The material particles fully contact heat transferring surface, because of the special compressing and swell-stirring effect of the chock shaped blade. The difference of the temperature, humidity and mixing effect are very small in the different axial area, so to ensure the stability of process.


Application:

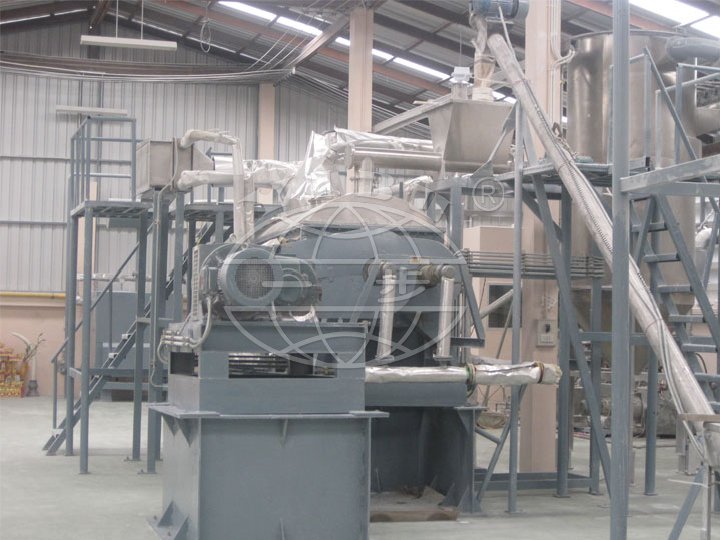

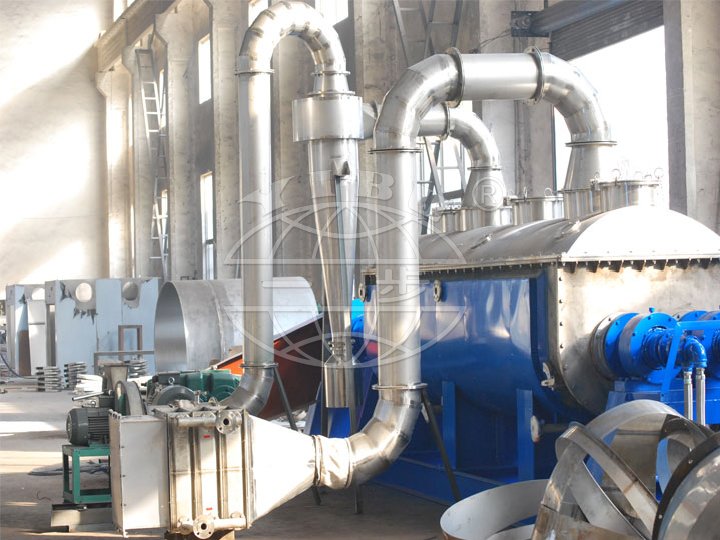

 Hollow Blade Dryer(Hollow impeller Dryer)(Hollow Paddle Dryer) is successfully applied in foodstuff, chemical, petrochemical, dyestuff, and industrial mud etc. The heating transferring, cooling and stirring characters enable it to perform the following unit operation: combustion (low temperature), cooling, drying (recovery of solvent), heating (melting), reacting and sterilizing. The stirring blade is heat transferring surface too, so to increase heat transferring area of unit effective volume is increased, and decrease processing time. The chock shaped heat transferring surface has self-cleaning function. Compressing and swell-stirring functions make the material mixed uniformly. The material perform the movement of "piston flow" along the shaft. The difference of the temperature, humidity and mixing effect are very small in the different axial area. The blade dryer is capable to perform combustion under low temperature if we adopt thermal oil as heating media, such as Ca2S04 · 2H2O is combusted into Ca2SO4 · 1/2H2O, NaHCO3 is combusted into Na2CO3 and so on. It's capable for cooling process with water and chill salted water etc, such as base cooling machine in Na2CO3 industry, instead of the old style base air cooler, so to save power and the processing equipment for tail air, and save operation cost. Drying is the main function of this machine. Drying without hot air makes the process of solvent recovery, energy consumption, control of environment ideal, easy to teat. It's specially applicable for recovery of solvent and heat sensitive material that is easy to be combusted or oxidized. It has been widely used in fine chemical, petrochemical, and dyestuff industries. The uniformity of temperature, humidity and mixing effect in axial areas make the equipment capable for heating and melting, or reaction of solid material. It's successfully applied in mixed fertilizer and character transformed starch industries. The blade dryer is also capable for sterilizing food and starch. The big heating area in unit effective area, dry the material to sterilizing temperature very fast, so to avoid quality change caused by long time heating.



Optional items
1.for the feeding system , we have more choices . such as vacuum feeding ,screw feeding and so on .
2.For the main shaft ,it can be done with hollow state for steam ,it is on request .

Flow Chart

Equipment Technical parameters

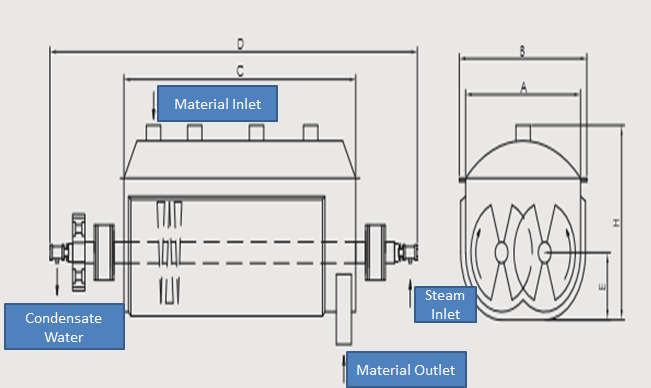

spec\item	QJ3	QJ9	QJ13	QJ18	QJ29	QJ41	QJ52	QJ68	QJ81	QJ95	QJ110
Heat transferring area m2	3	9	13	18	29	41	52	68	81	95	110
effective volume m3	0.06	0.32	0.59	1.09	1.85	2.8	3.96	5.21	6.43	8.07	9.46
range of rotating speed r.m.p	15-30	10-25	10-25	10-20	10-20	10-20	10-20	10-20	5-15	5-15	5-10
power kw	2.2	4	5.5	7.5	11	15	30	45	55	75	95
width of vessel mm	306	584	762	940	1118	1296	1474	1652	1828	2032	2210
total width mm	736	841	1066	1320	1474	1676	1854	2134	1186	2438	2668
length of vessel mm	1956	2820	3048	3328	4114	4724	5258	5842	6020	6124	6122
total length mm	2972	4876	5486	5918	6808	7570	8306	9296	9678	9704	9880
distance of material inlet & outlet mm	1752	2540	2768	3048	3810	4420	4954	5384	5562	5664	5664
height of center mm	380	380	534	610	762	915	1066	1220	1220	1220	1220
total height mm	762	838	1092	1270	1524	1778	2032	2362	2464	2566	2668
steam inlet “N” （inch)	3/4	3/4	1	1	1	1	11/2	11/2	11/2	11/2	2
water outlet "o" (inch)	3/4	3/4	1	1	1	1	11/2	11/2	11/2	11/2	2

•
