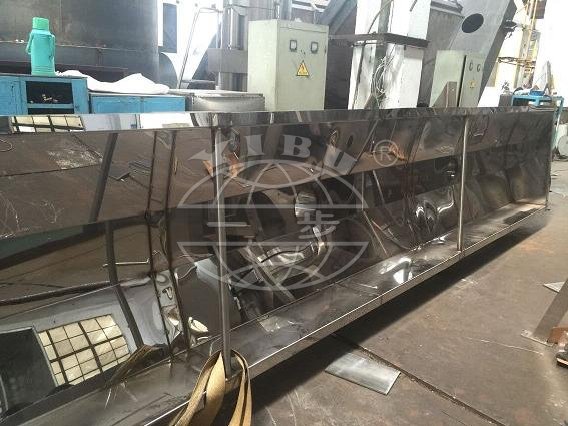

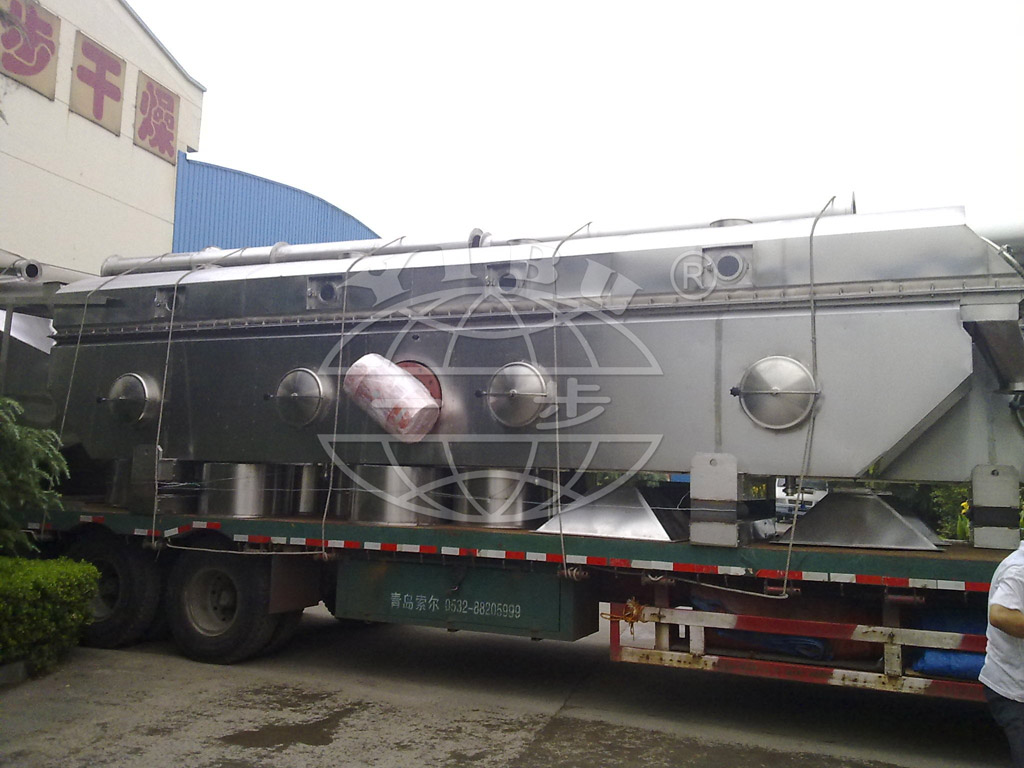

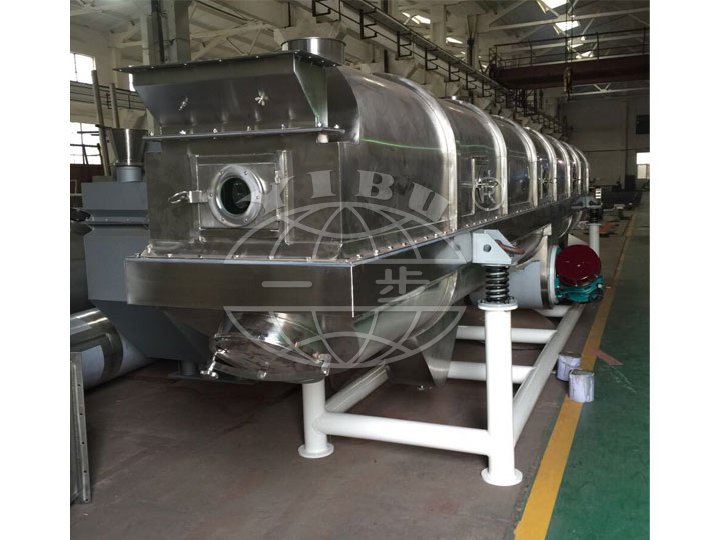

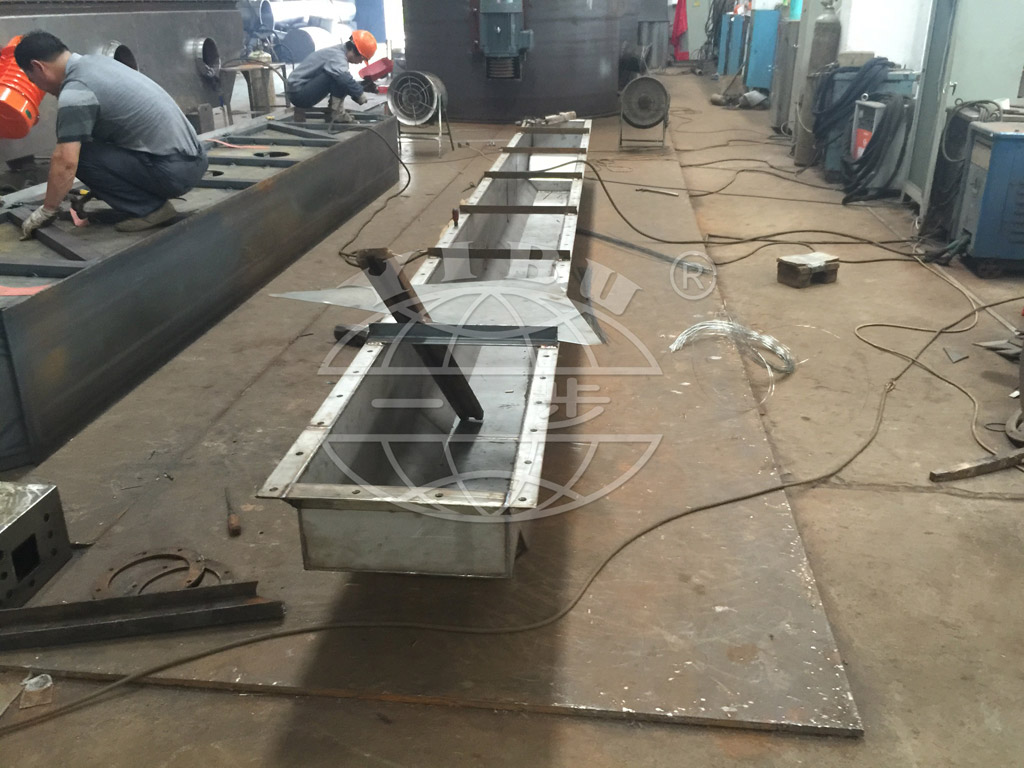

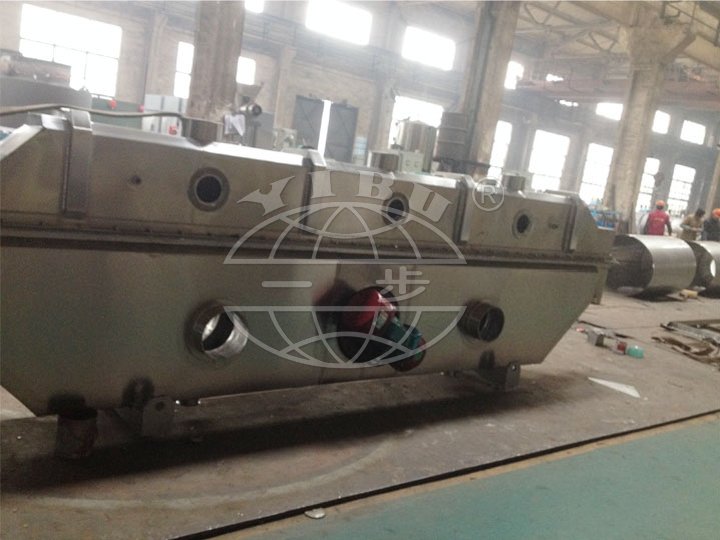

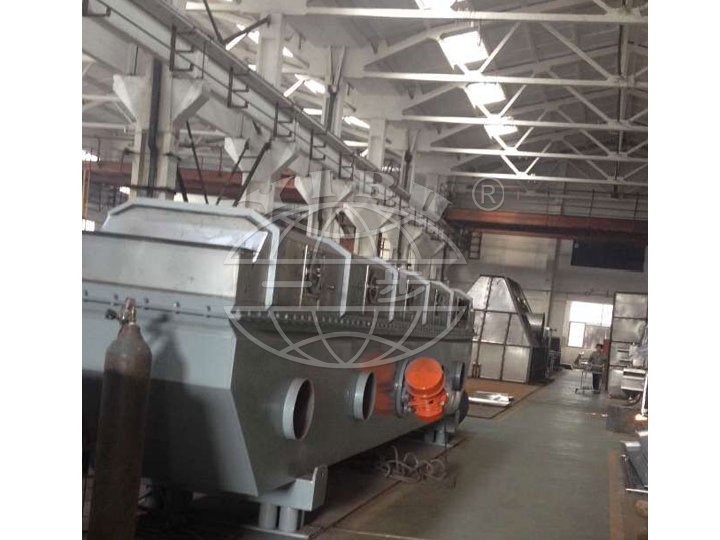

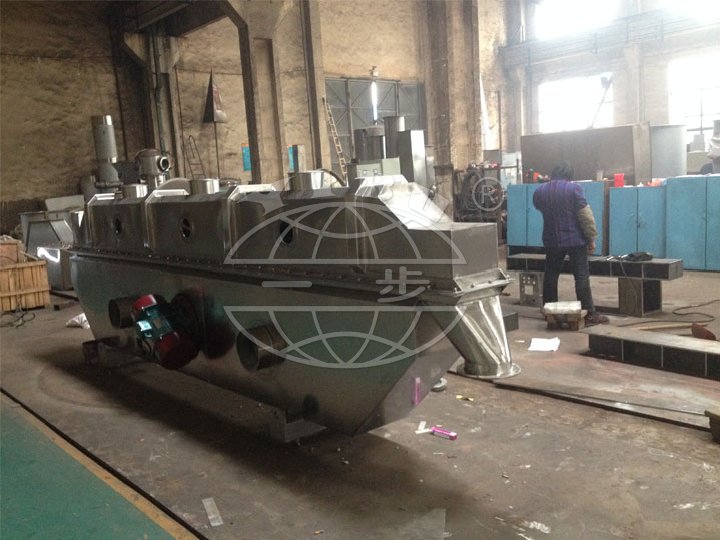

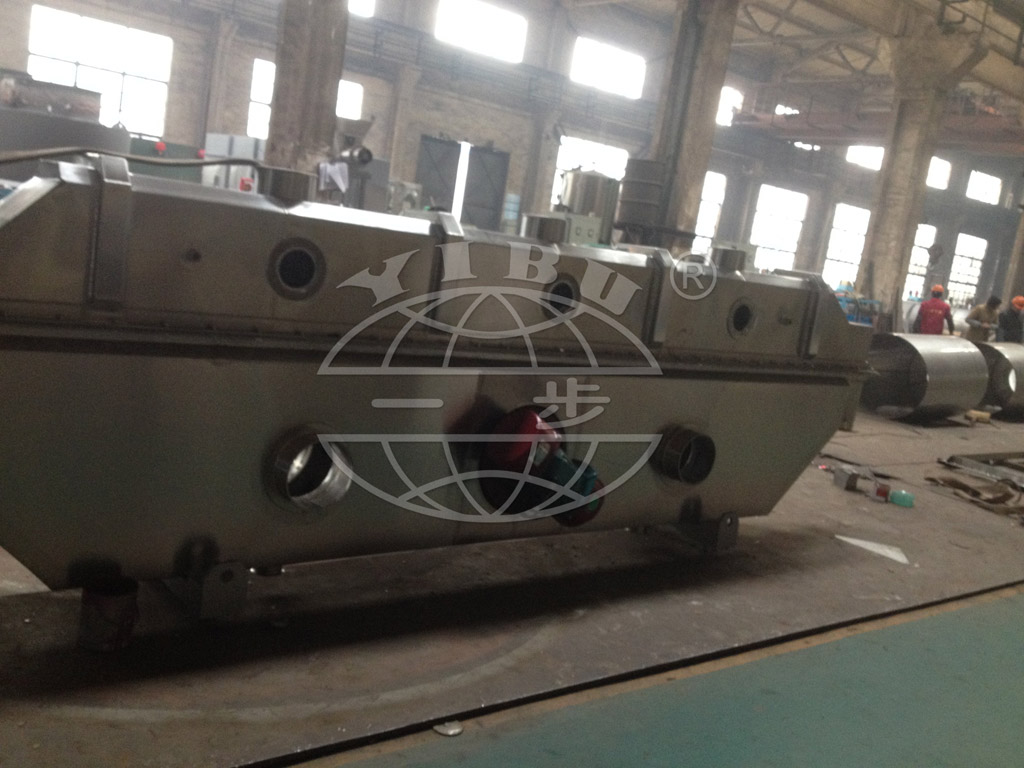

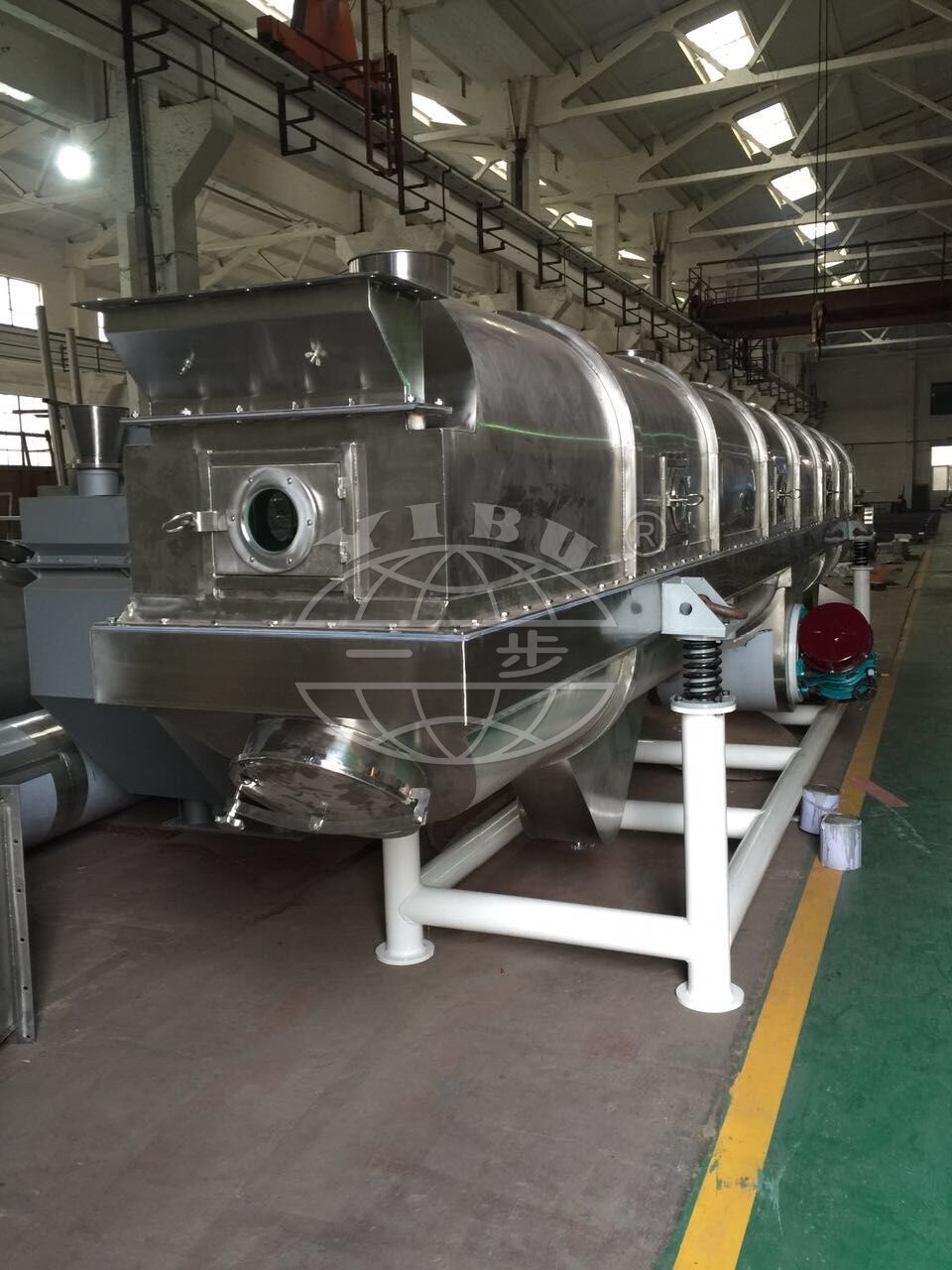

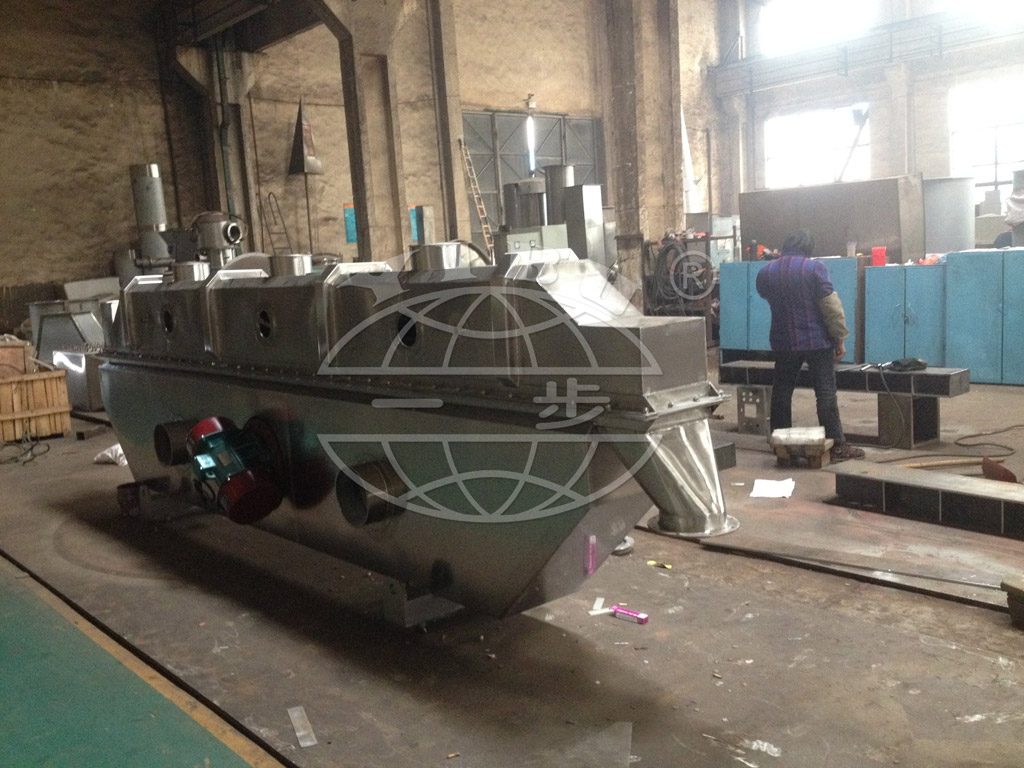

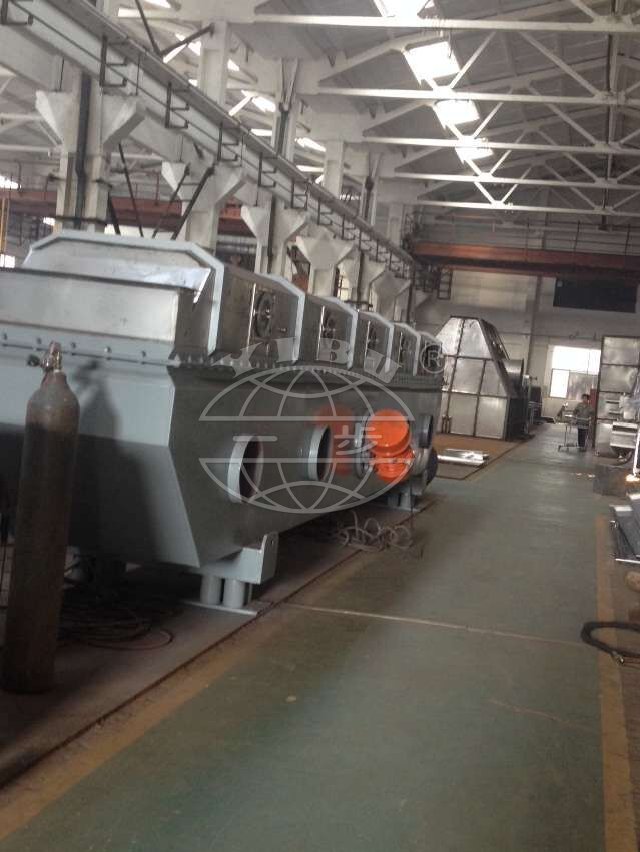

GZQ Series Vibrating  Fluid Bed Dryer



Features

1. The state of fluidization is uniform and no dead gaps or broken phenomenon so to have dry，cool product.
2. It is good in adjustment and wide in the field of application The thickness of raw material and the speed of raw material to be moved inside the machine and the change of vibration range can be steeples.
3. The damage the surface of raw material is small So it can be used for raw materials that are easily to be broken If the granule is not normal，the effect of process cannot be effected
4. The structure is fully seal it is effective to prevent from cross pollution of raw materials and the working environment is clean.
5. The mechanical and heat are high and its effective of energy saving. Compared to ordinal drye r，30-60％of energy is saved.

Working Principle

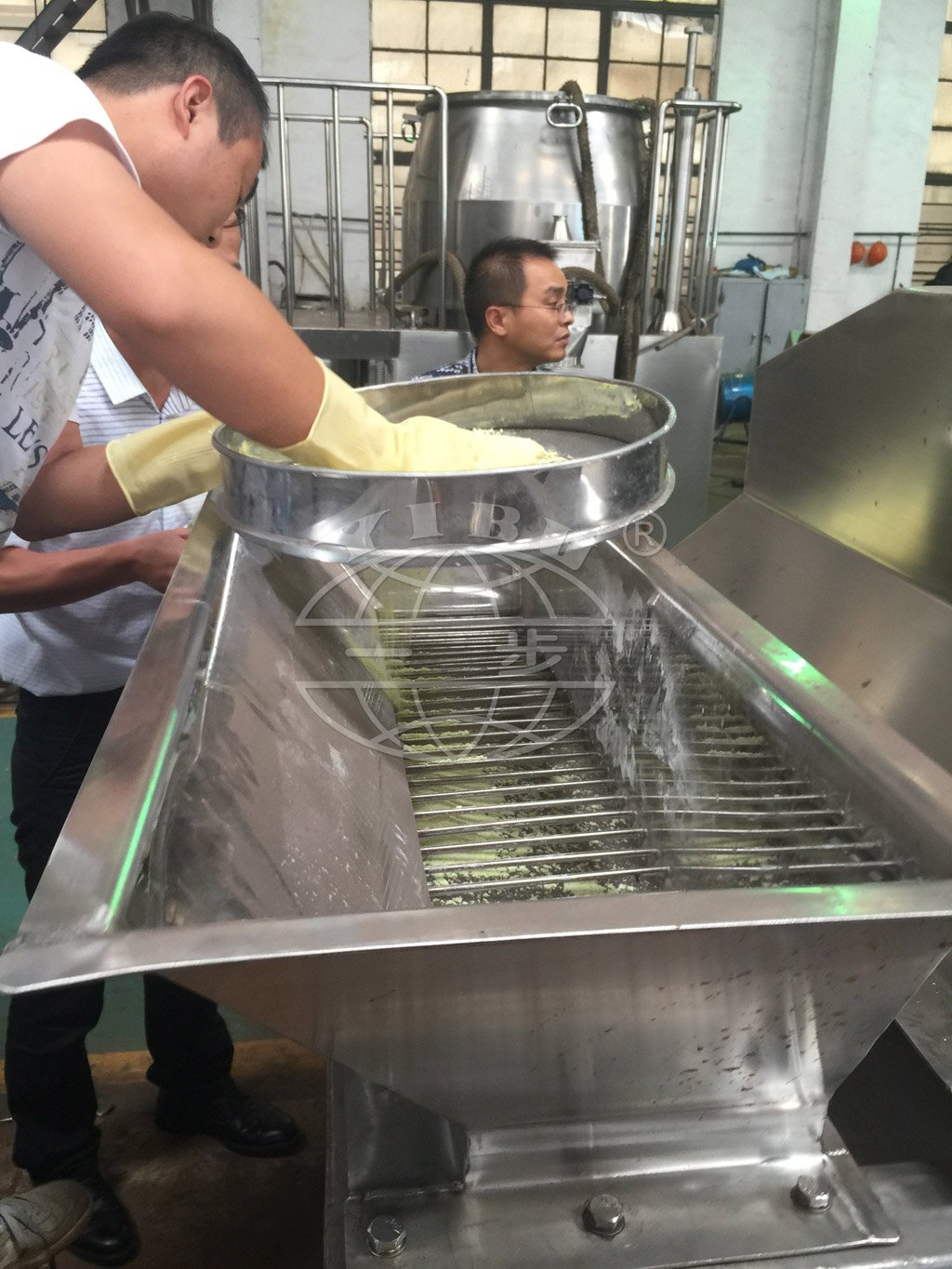

Raw mate rial is feed into the machine from equipment inlet and move forward continuously along with the horizontal direction under vibratory power The hot air passes through fluidized—bed and exchange with raw materials。damp，then the wet air is dusted by cyclone separator and exhausted from air outlet，the d ried material is discharged through finished material outlet.



Application

It is applicable for drying，cooling of powder or granule state materials，such as citric acid，monosodiurn glutamate，borax，ammonium sulphur,compound fertilizer，piece of radish，bean，lees，seed，mine reside and sugar in chemical， pharmaceutlcal，foodstuff，grain，mine and so on industries



Features
1．Adopt vibration motor, it is smooth in running and convenient in maintenance. The noise is low and the service life is long.
2．The state of fluidization is uniform and no dead gaps or broken phenomenon so to have dry ,cool product.
3．It is good in adjustment and wide in the field of application. The thickness of raw material and the speed of raw material to be moved inside the machine and the change of vibration range can be steeples.
4．The damage the surface of raw material is small. So it can be used for raw materials that are easily to be broken. If the granule is not normal, the effect of process can not be effected.
5．The structure is fully seal, it is effective to prevent from cross pollution of raw materials and the working environment is clean.
6．The mechanical and heat are high and its effective of energy saving. Compared to ordinal dryer, 30-60% of energy is saved.

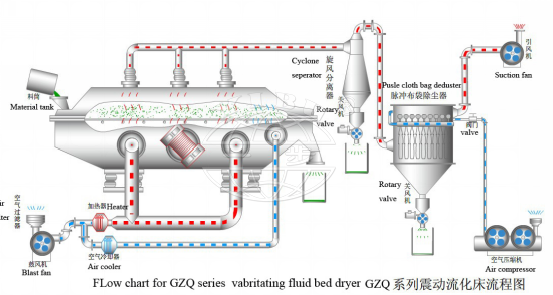

Flow chart

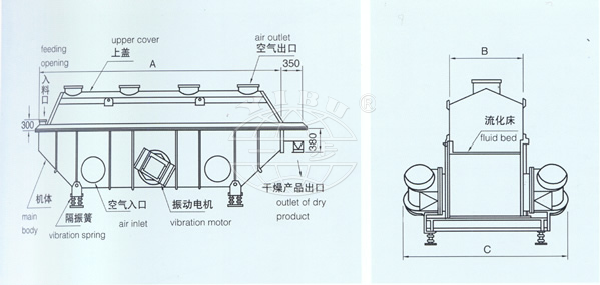

Overall Drawing

Technical Parameter

spec	fluid bed		size			power of motor (kw)	weight (kg)
	W	L	A	B	C
3×30	300	3000	3505	450	1050	0.37×2	1240
3×45	300	4500	5005	450	1050	0.75×2	1570
6×45	600	4500	5005	750	1350	1.1×2	1967
6×60	600	6000	6510	750	1350	1.1×2	2743
6×75	600	7500	8010	750	1750	1.5×2	2886
9×60	900	6000	6510	1050	1750	1.5×2	3540
9×75	900	7500	8010	1050	1750	2.2×2	4219
12×75	1200	7500	8010	1400	2200	3×2	5223
15×75	1500	7500	8010	1700	2500	4×2	6426
18×80	1800	8000	8520	2000	2800	4×2	8600

Options

if using cooling air , the machine will be the best cooler for decreasing the temperature of the dried product.

•
