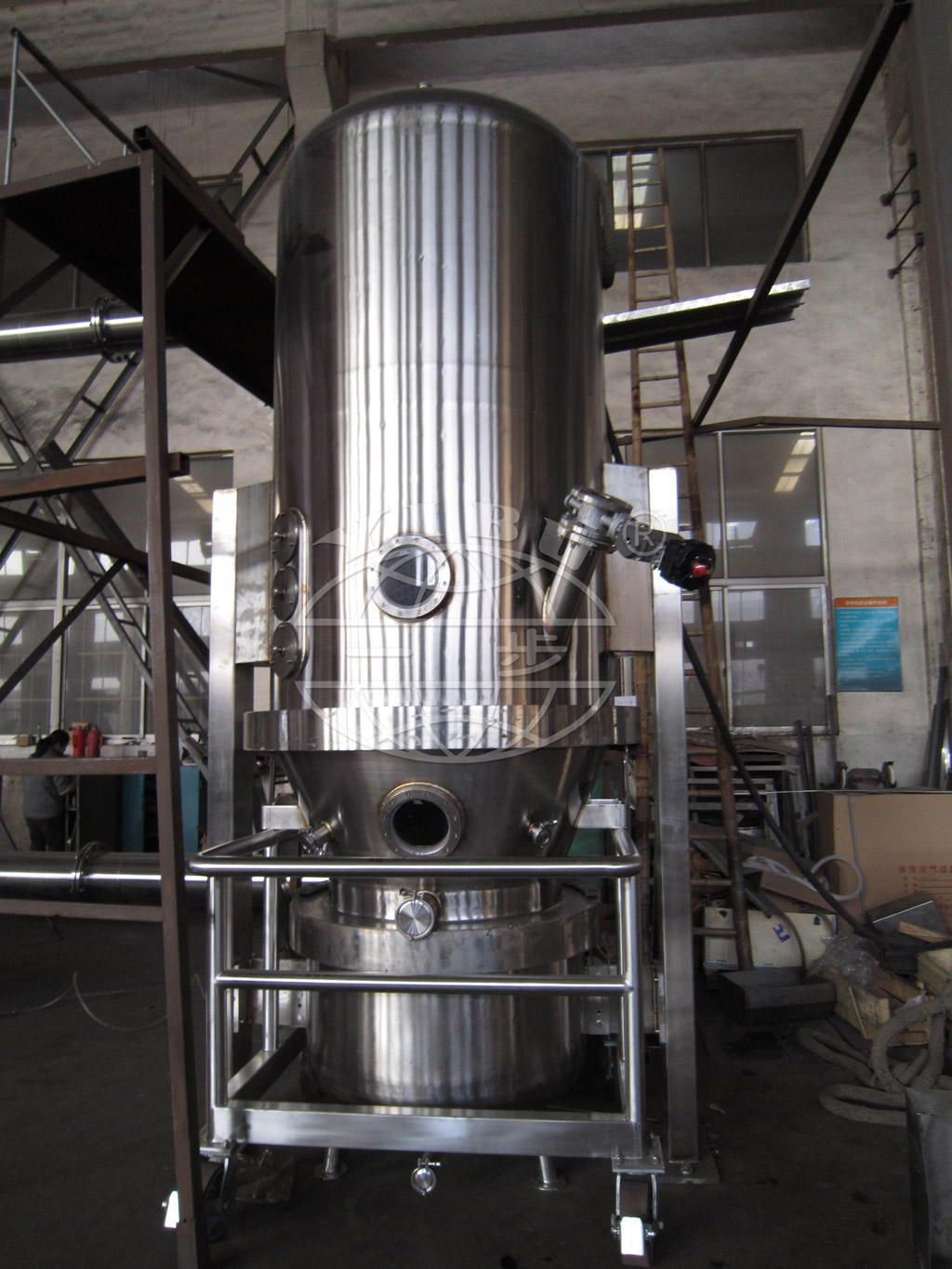

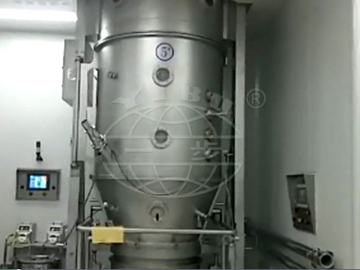

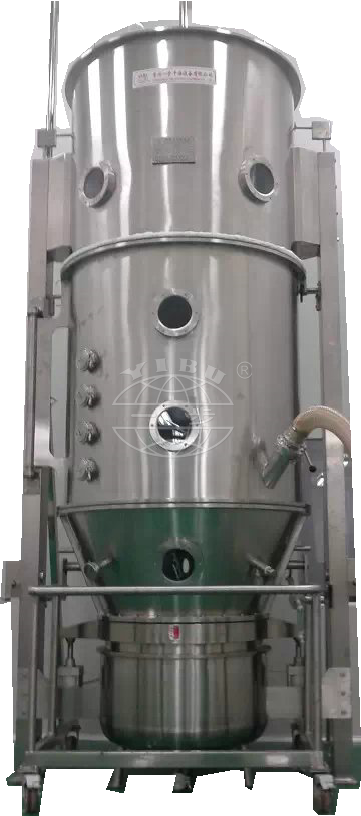

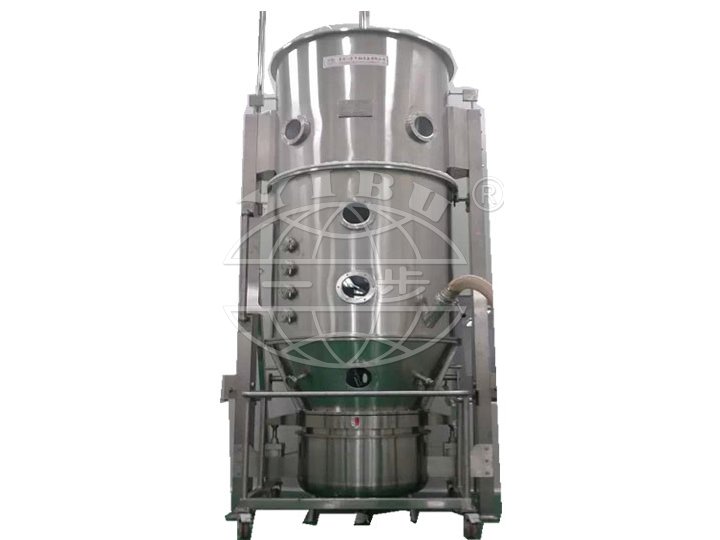

FG Series Vertical Fluid Bed Dryer(FBD)

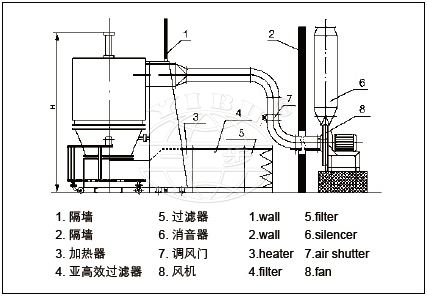

Principle
The fresh air is filtered by the two or three filters and then enter into the heating system for heating . After heated , the hot air enter into the drying chamber and blow up the material in the bowl of the FBD and let the material into fluidization conditions .during this period , the material is dried . When customer use the machine , they can set the procedure and parameters according to the process requirements , and then start the machine .

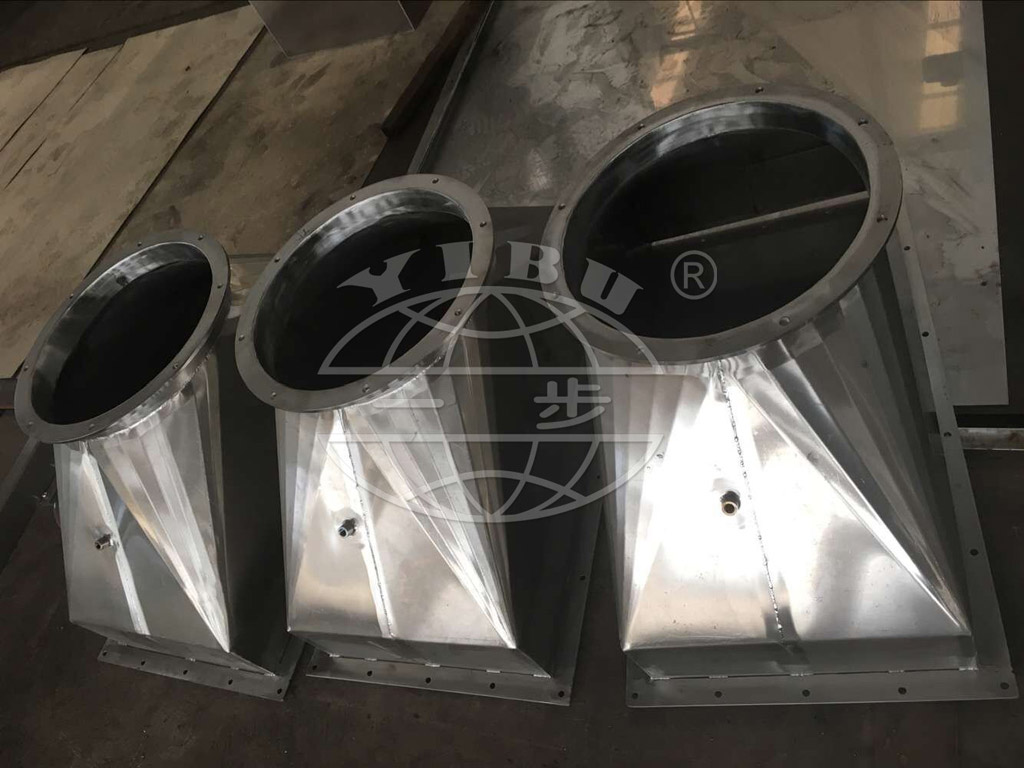

1. INLET AHU
The inlet AHU consists of Primary filter(G4), Post filter (F8), high efficiency filter(H13 )and heater with accurate temperature control. The inlet air flow, speed and pressure is variable and controllable. For the heater , it can be steam radiator ,electrical heater , gas furnace and so on .

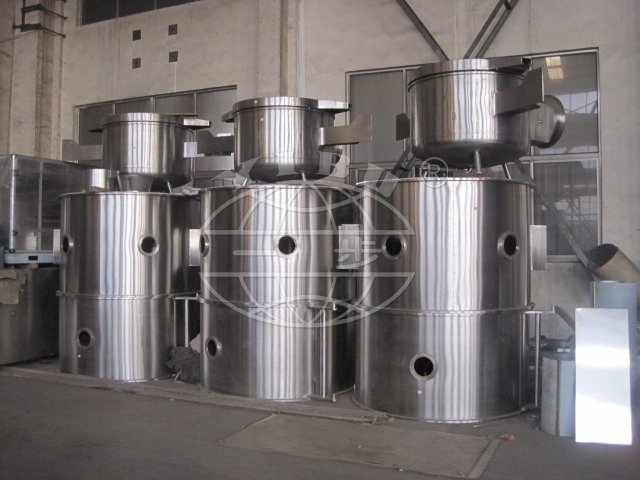

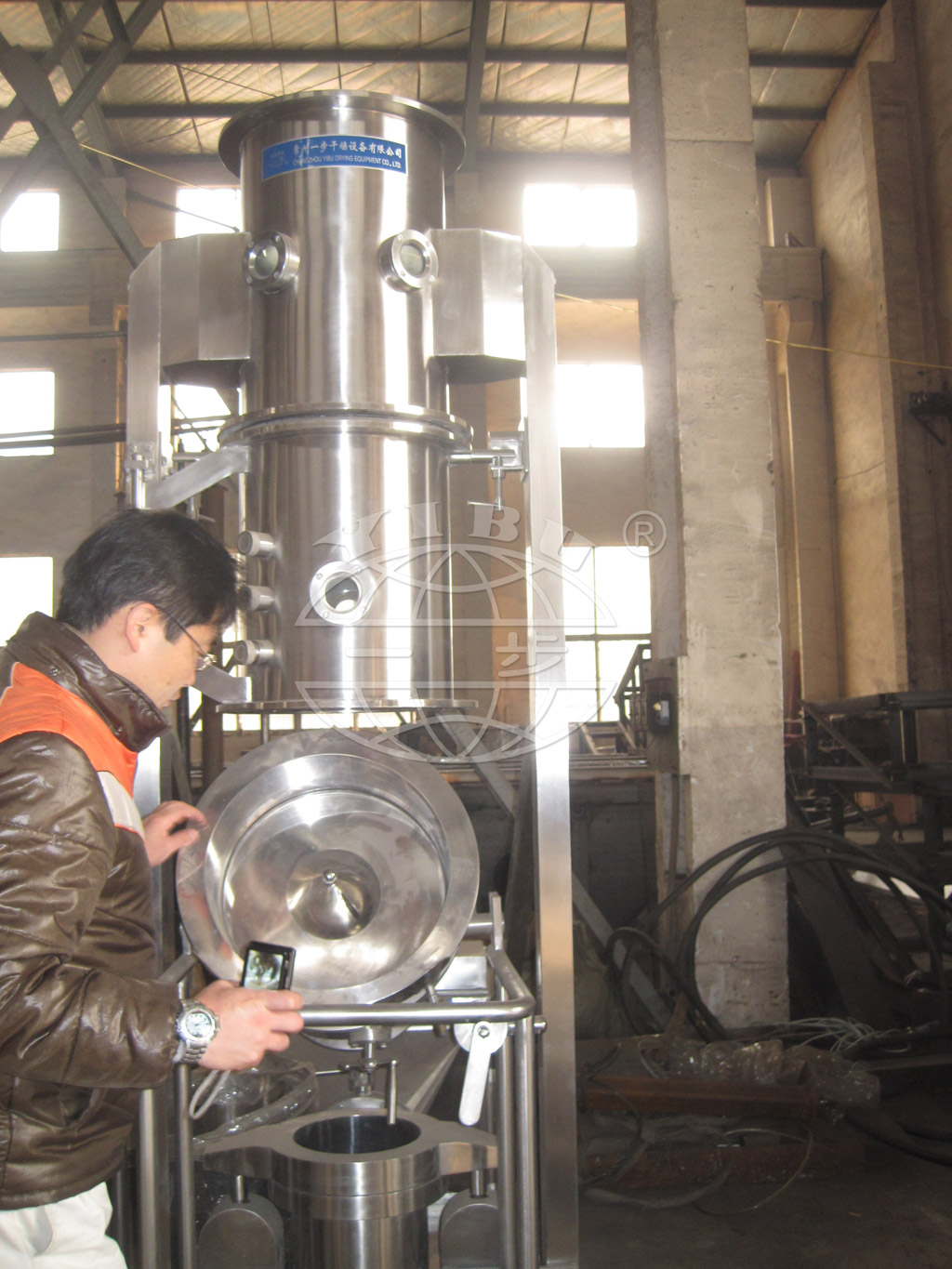

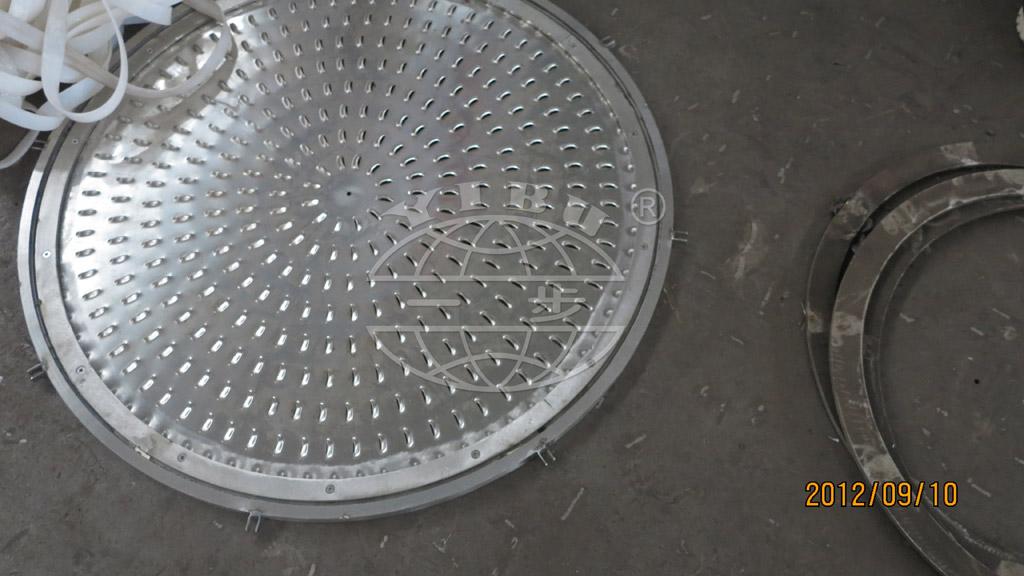

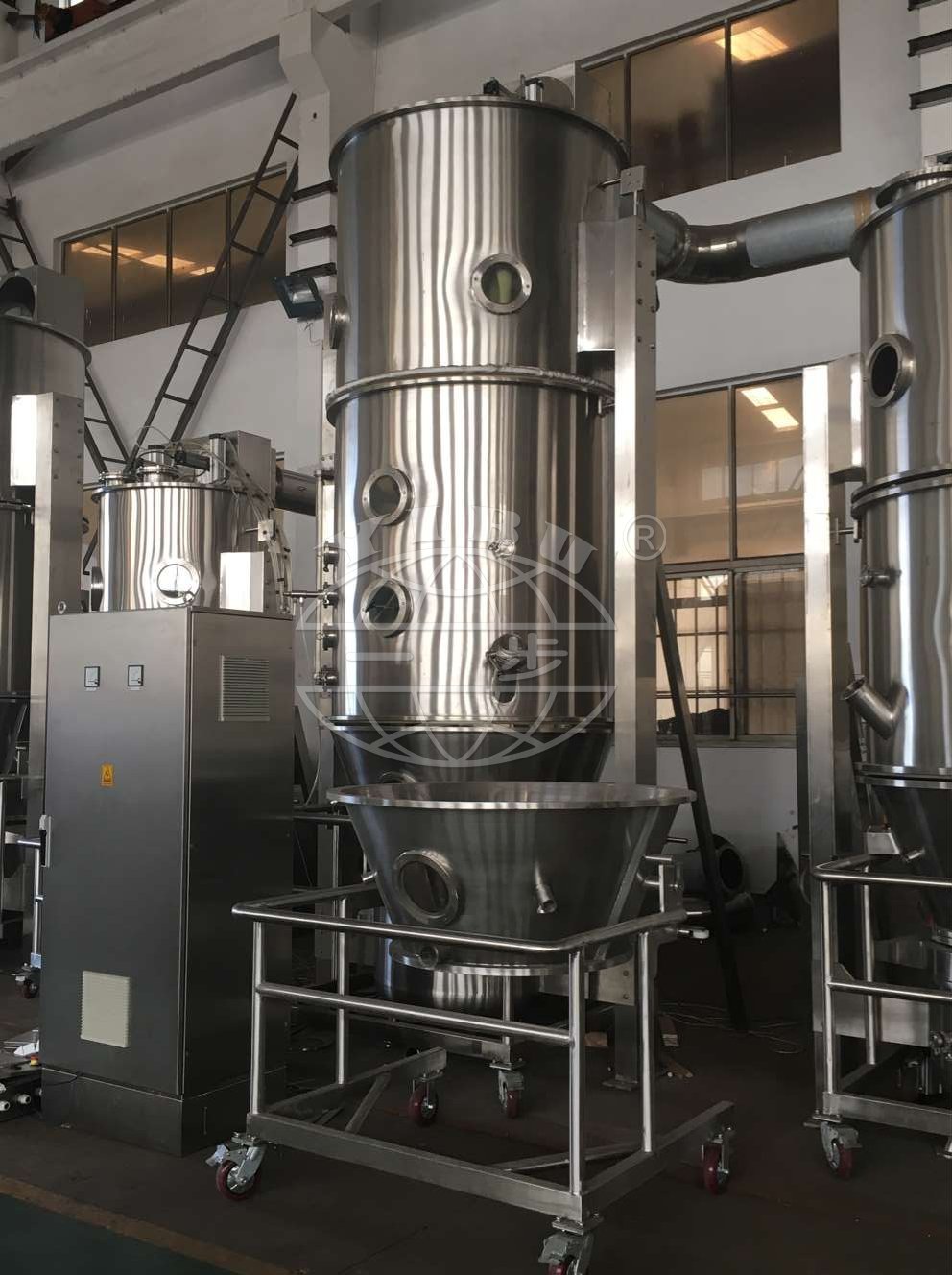

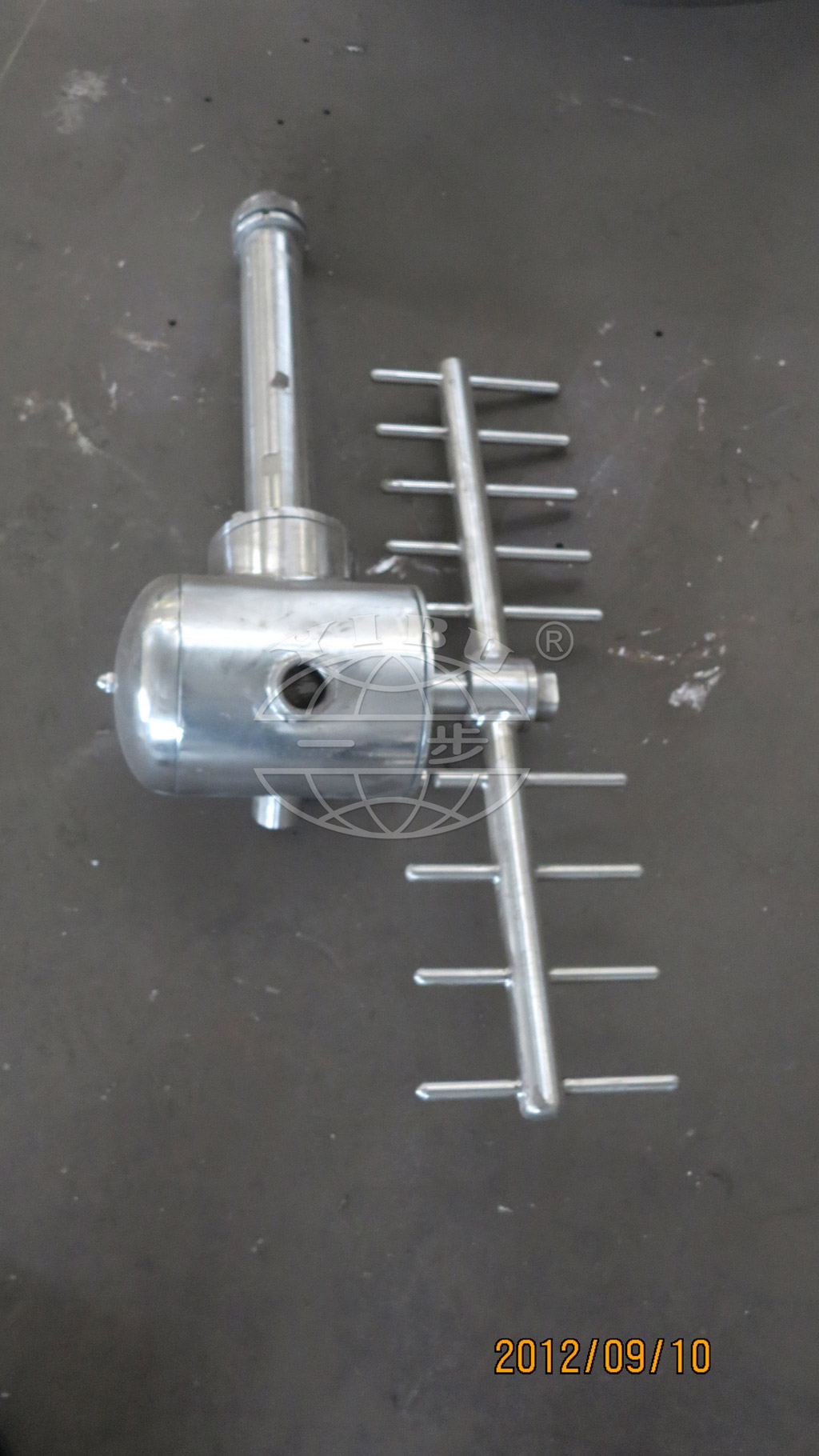

MAIN BODY STRUCTURE

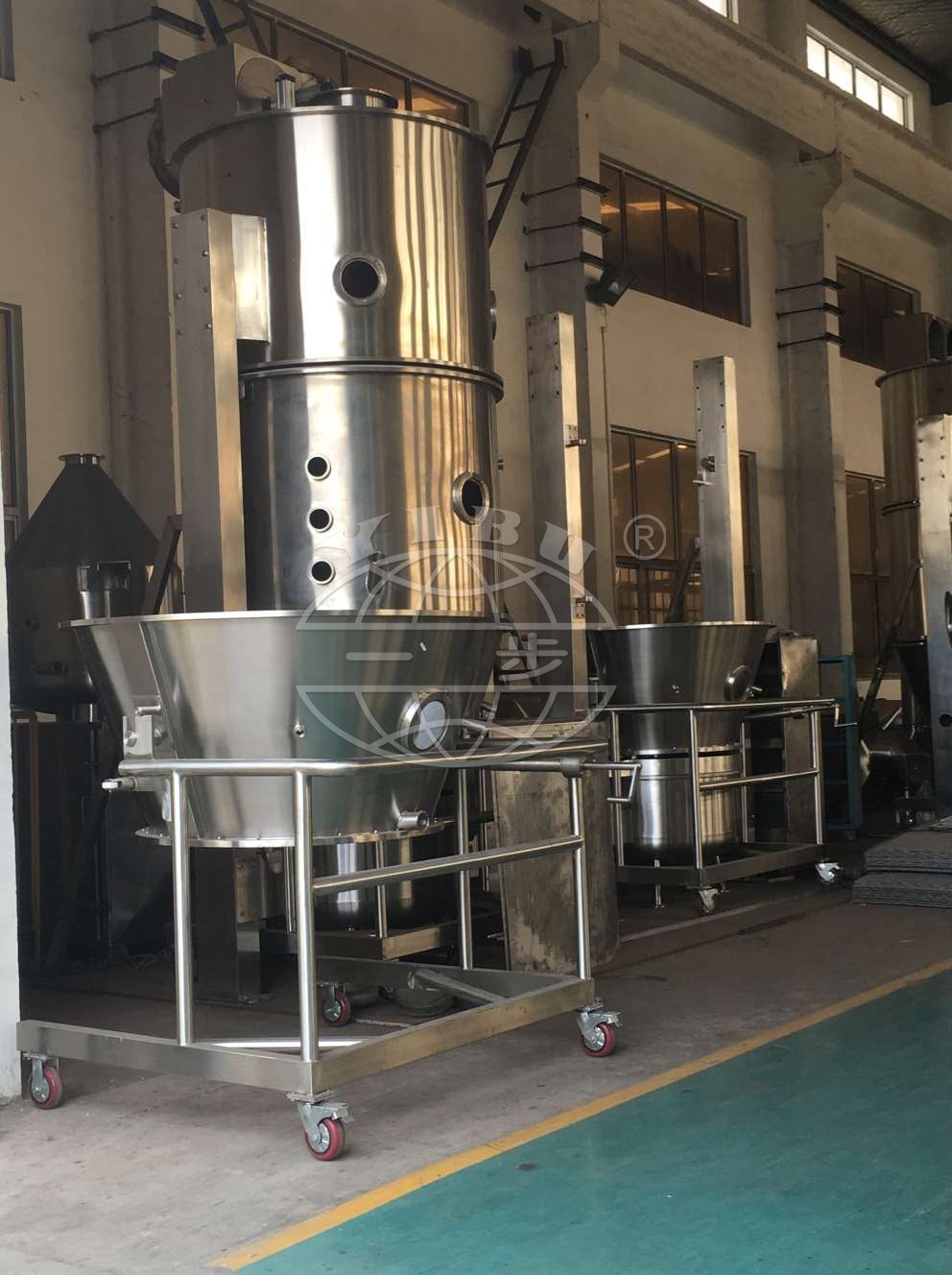

The main body structure consists of bottom bowl, movable product bowl with trolley , fluidized chamber, expansion chamber/filter housing. The bottom bowl, product container and fluidized chamber are inflatable silicon gasket sealed with compress air inspection sensor to assure the reliable sealing.
3. PRODUCT FILTER

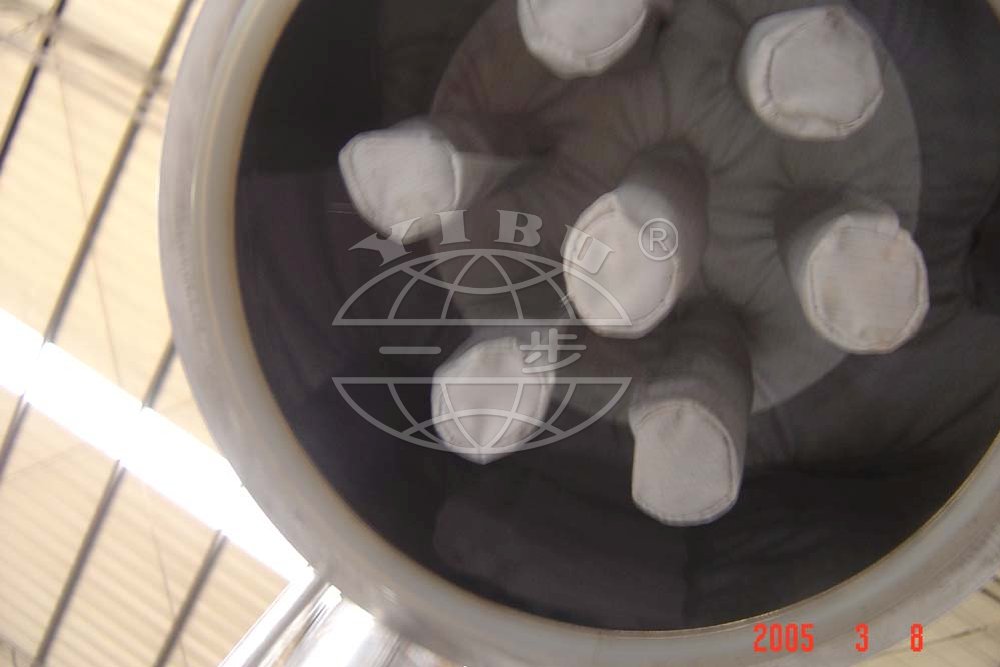

The double structured bag filter in two pieces (in case request, stainless steel filter available) is inflatable silicon gasket sealed between the expansion chamber inner surfaces with compress air inspection sensor to assure the reliable sealing. A dust sensor is mounted on the exhaust piping and interlocked from control sys to secure the product safety during processing stage.
4. EXHAUST AHU
The exhaust dust collection filter is optionally designed for protect environment.
Features
1.Fluid bed to achieve fast heat transmission of medium.2.Seal negative pressure operation, there is no dust.
3.Because of using anti-static material as filter, it is safe in operation;
4.The equipment has no dead corner so it is easy to clean fully and there is no cross pollution;
5.It is in conformity with the requirements of GMP.

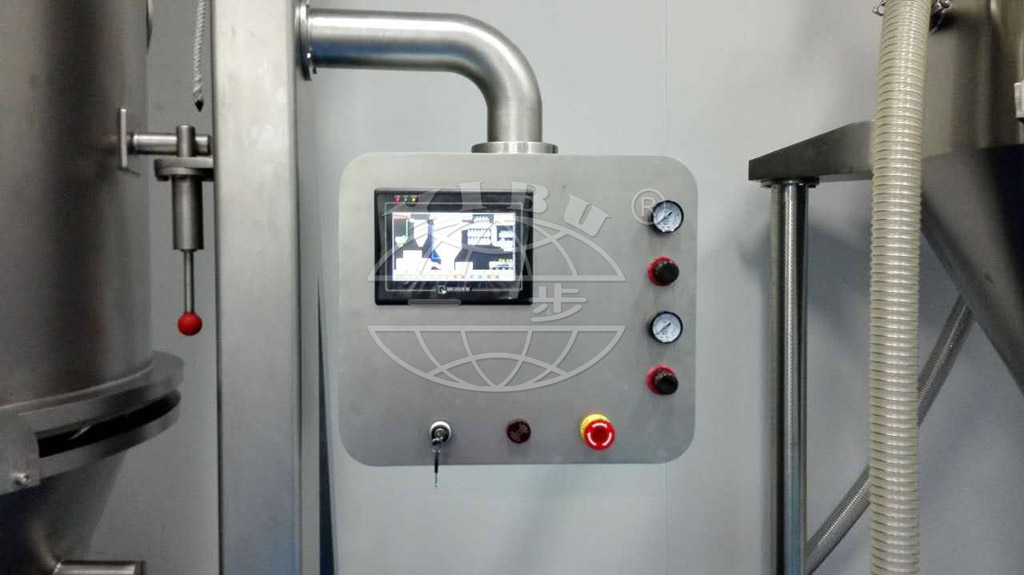

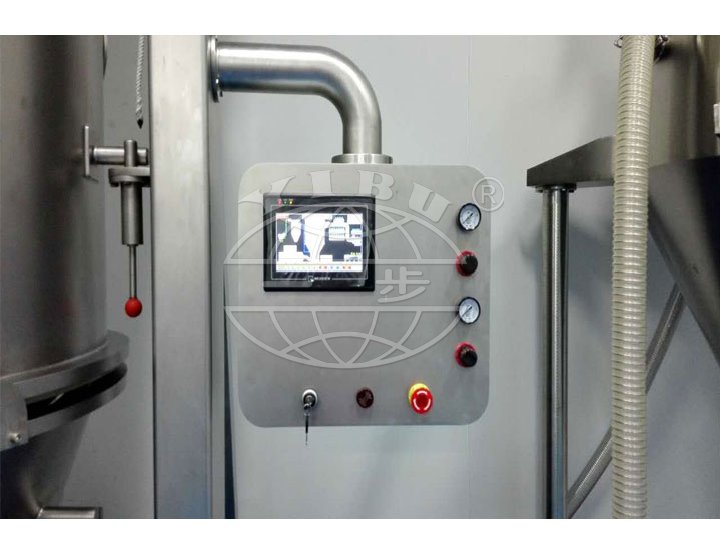

6. HMI and PLC control system, motor speed is controlled by VFD, and all process parameters can be recorded.

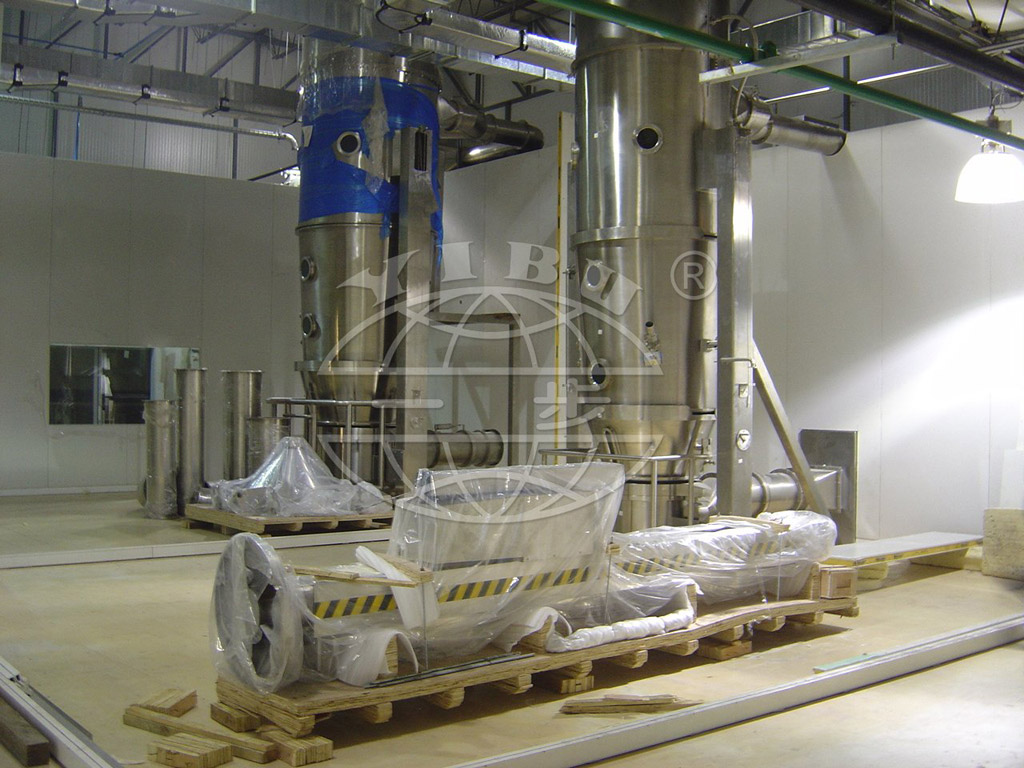

Application
The machine is main used for drying powder or granules from pharmaceutical, foodstuff, chemical and so on industries.
Optional item
1.2Bar &10Bar POWDER EXPLOSIONThe 2bar and 10 bar powder explosion proof design is selectable to ensure the operator, equipment and environment safety with reliable grounding device.
2. Product charging by the lifting machine
3.Product charging by the vacuum transfer machine
4.Through-wall structure for the machine in on request .
Technical parameters
|
Spec |
3 |
5 |
30 |
60 |
120 |
200 |
300 |
500 |
1000 |
|||||||
|
item |
unit |
|||||||||||||||
|
container raw material |
dim |
mm |
300 |
400 |
700 |
1000 |
1200 |
1400 |
1600 |
1800 |
2200 |
|||||
|
volume |
L |
12 |
22 |
100 |
220 |
420 |
670 |
1000 |
1500 |
2500 |
||||||
|
production capacity |
min |
Kg/batch |
1.5 |
4 |
15 |
30 |
80 |
100 |
150 |
250 |
500 |
|||||
|
Max |
Kg/batch |
4 |
6 |
36 |
72 |
140 |
240 |
360 |
600 |
1100 |
||||||
|
consume of steam |
Kg/batch |
12 |
23 |
70 |
140 |
211 |
282 |
366 |
465 |
800 |
||||||
|
amount of compressed air |
m3/min |
0.3 |
0.3 |
0.3 |
0.6 |
0.6 |
0.9 |
0.9 |
0.9 |
1.5 |
||||||
|
power of fan |
kw |
2.2 |
4 |
5.5 |
11 |
18.5 |
22 |
30 |
45 |
75 |
||||||
|
temperature |
℃ |
Adjustable from ambient to 120 |
||||||||||||||
|
collection rate |
% |
>99 |
||||||||||||||
|
time of operation |
min |
15-30 (depends on material) |
||||||||||||||
|
content of final product |
% |
～0.2 (depends on material) |
||||||||||||||
|
noise |
db |
≤75 |
||||||||||||||
|
height of main machine |
mm |
2100 |
2300 |
2500 |
3000 |
3300 |
3800 |
4000 |
4800 |
6200 |
||||||
-
