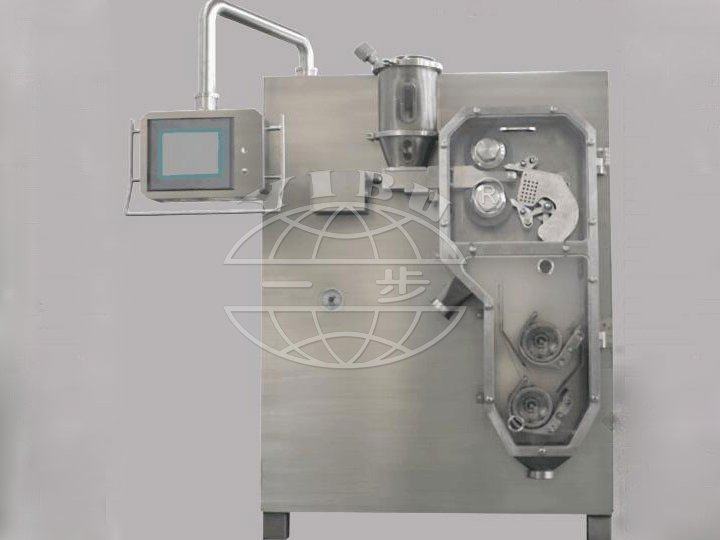

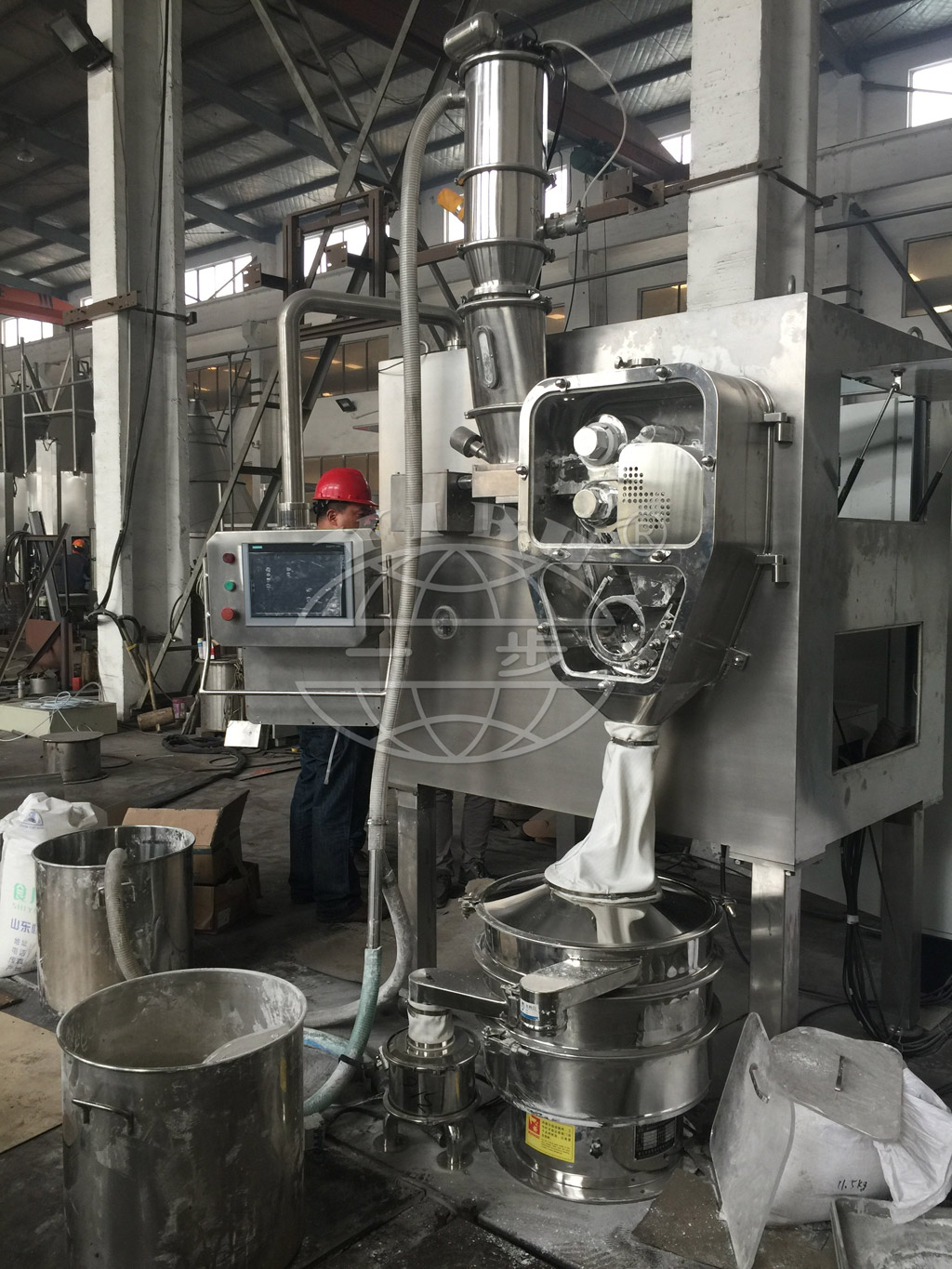

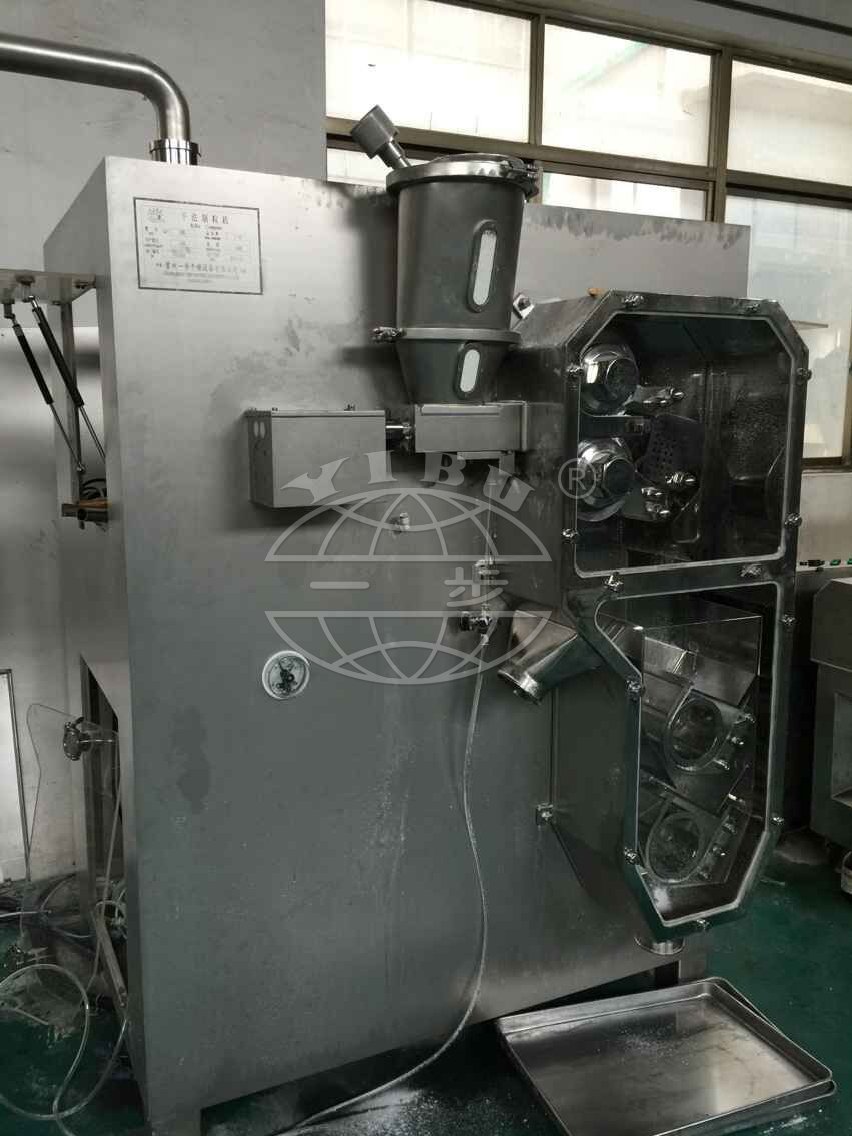

LGS Series Roller Compactor (Dry Granulator)



Product Description
LG Series Roller compactor(Dry Granulator) is a newly self-developed equipment with integration of the extrusion，pulverizing and granulating.it also belongs to a new equipment with function of  energy -save and  environment protection.

For this equipment , it adopted the newest rolling control technology .

Through adjusting the physical properties of fluctuation between different material and same material , it can make the powder material into particle material directly.also ,which makes the process parameters of the roller compactor (dry granulator ) accurate and repeate  adjustment(such as capacity, flake density, rolling pressure, speed and so on). Therefore it  can produce high quality granules efficiently and also improves the stability, the disintegration and solubility of the granule.



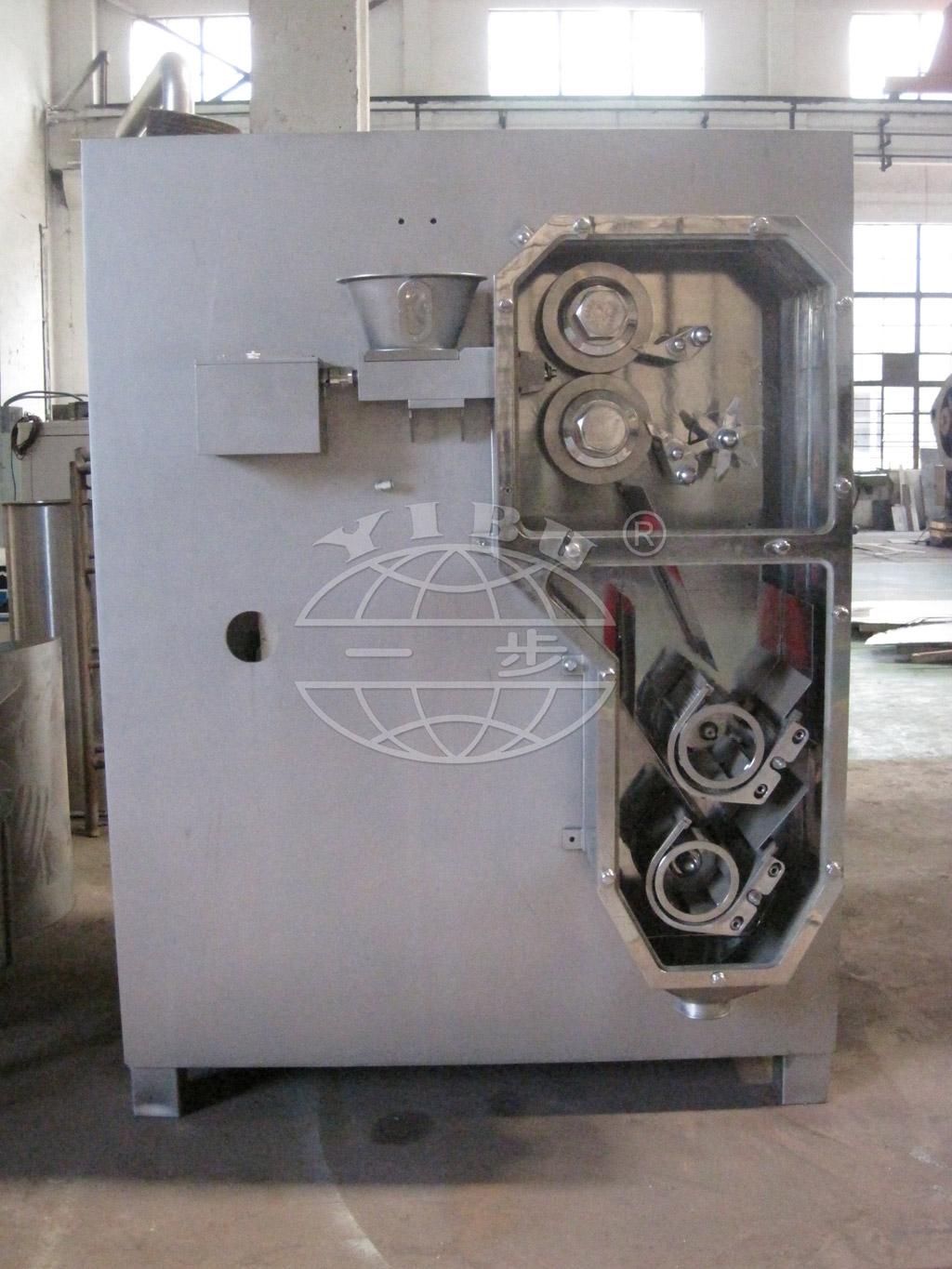

Principle

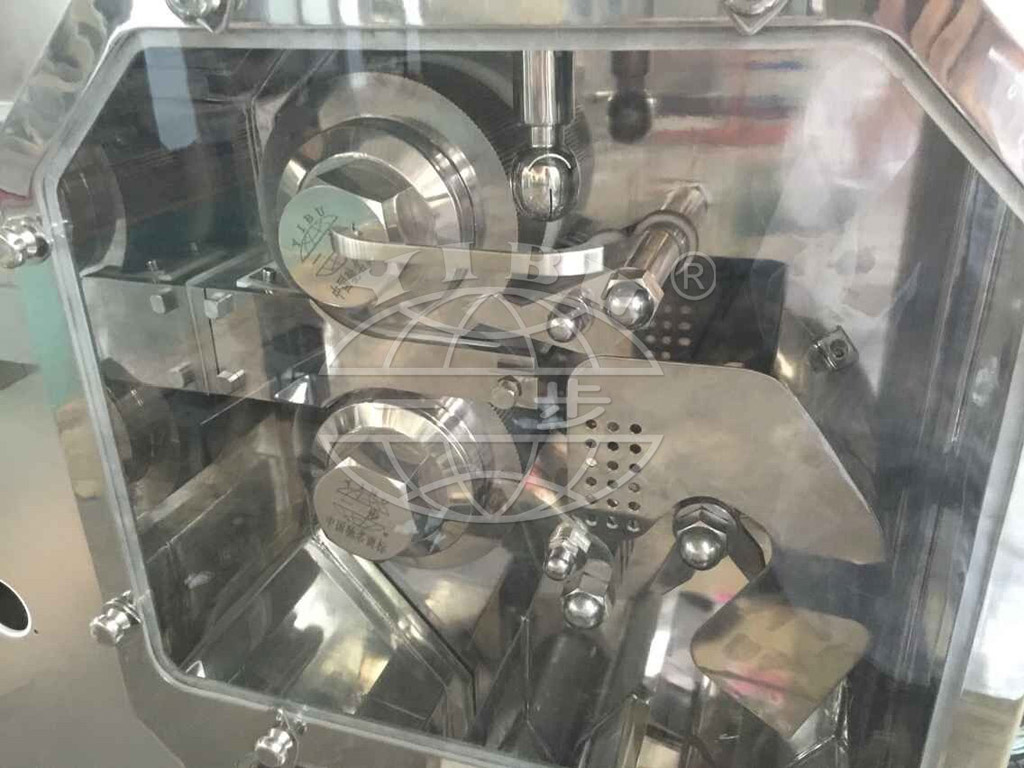

After mixing  , the well-mixed powder is fed into the roller compactor(dry granulator) hopper via feeding system(vacuum feeding or manual feeding).There is a scale on both top and bottom of the hopper to monitor the level of the fed material. Through a transverse screw feeder ,powdery materials are fed into the vetrical screw feeder . The vertical screw feeder than feeds the product into the nip area of the compacting rolls.Due to the different diameter and speed between screw feeders ,pre-compacting effect is produced on powders and material . If material is not feeding before compacting ,then the final compacted product will have splitting or breakage occurred . To sole this problem, this machine is equipped with vacuum feeding system .In some cased ,the output is increased by 4-5times and compacting efficiency is increased by 40%. The roller compactor then compacts the material into flakes .the flake then falls into one or several subsequent sieving mills after compaction . Incoming flakes are reduced in size and sieved into granules with desired grain sizes.Optional screening machine is available on request.Undersized particle can be -fed if necessary. The whole process can be controlled by the PLC and achieve automatic production in a total contained way.



Features

Compared with traditional wet granulator , the roller compactor (dry granulator )can make the power raw material into the granule without adding any intermediate and additive . Meanwhile, the granule from the roller compactor (dry granulator ) is very uniform in fineness , and the bulk density of granule is extremely increased .
Such process for roller compactor (dry granulator ) is not only to control the pollution during the process ,reduce the area occupied ,but also reduce the power consuption , and let the process flow more reasonable . It improves the material appearance and flow-ability, and make the material  storage and transport easily .meanwhile , the solubility of the material, the specific surface area and porosity can be controlled. For the roller compactor (dry granulator ) ,  it is especially suitable for the material which can not be made into granule by wet mixing granulator and fluidizing granulator . The advantage for the roller compactor (dry granulator) as bellow:
1.As to avoid cross pollution during the process , we equip the machine with the granulating device and drive device separately  .
2.All material contact parts are convenient to be dismantled for cleaning.  It can avoid the dust fly effectively in order to reduce the pollution possibility .
3.Filling mechanism with natural vent channel can make the material distribute into the machine informally, and let the bulk density more unique .
4.Unique cooling system make the roller adjust its temperature itself.

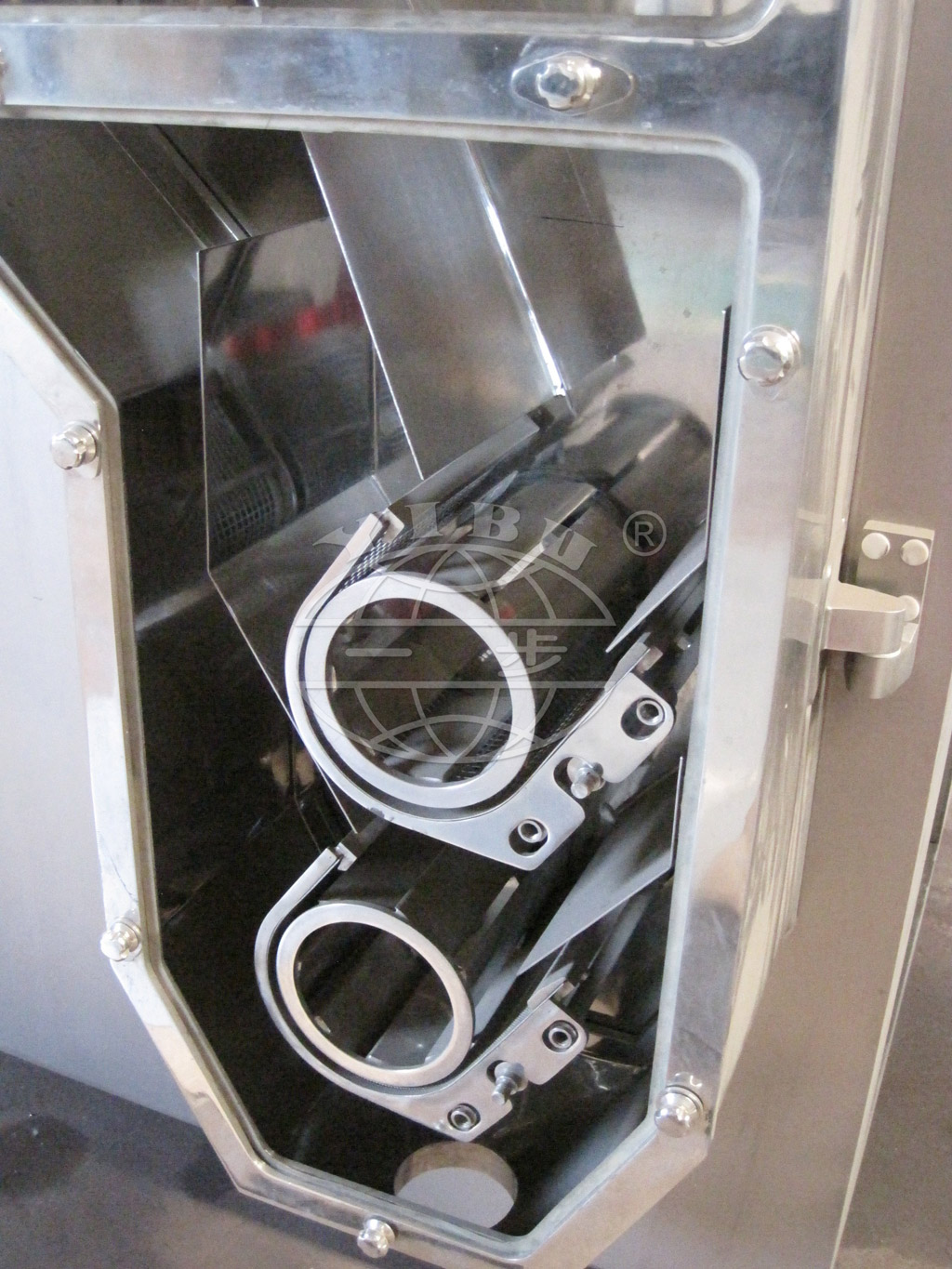

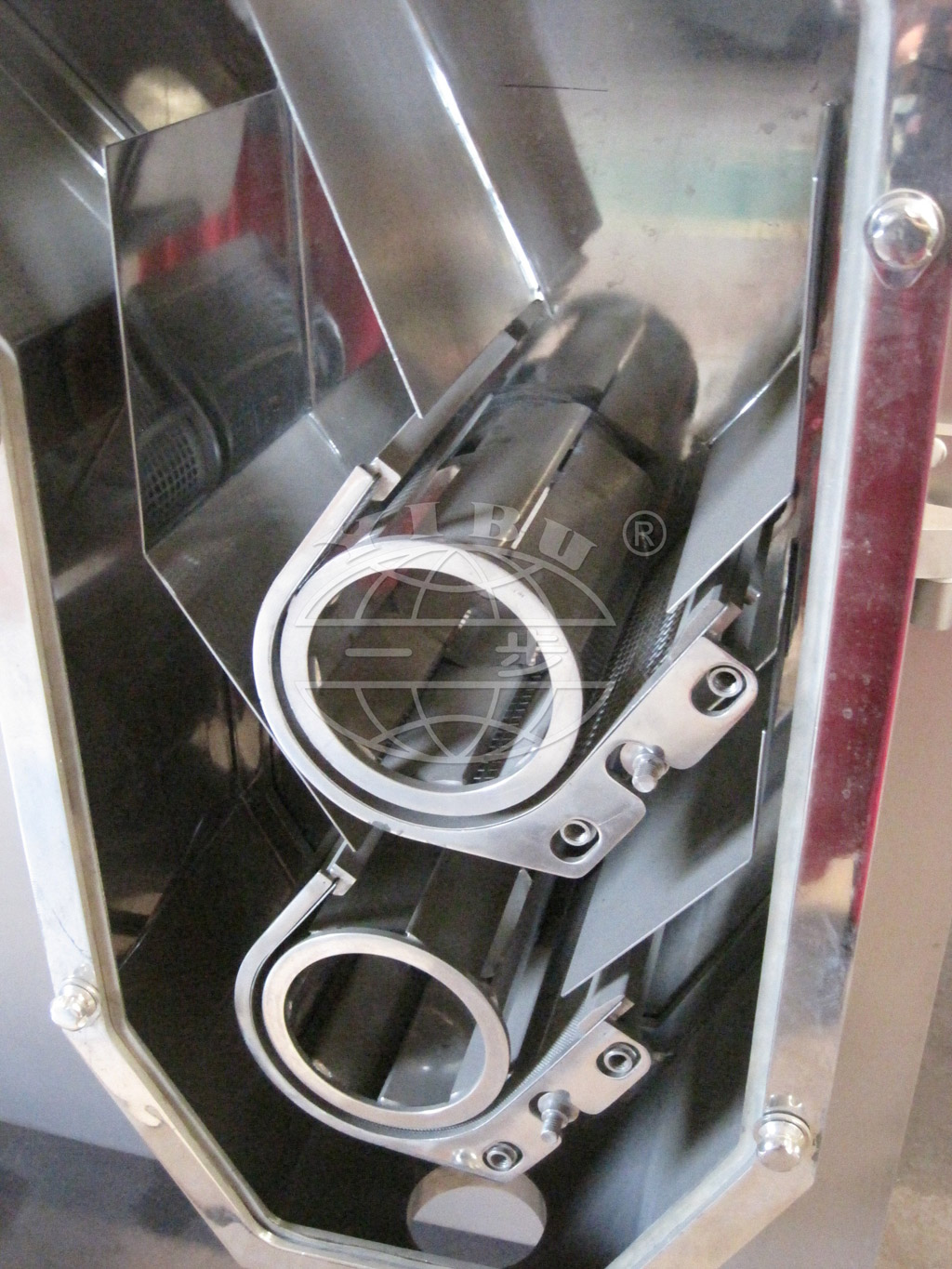

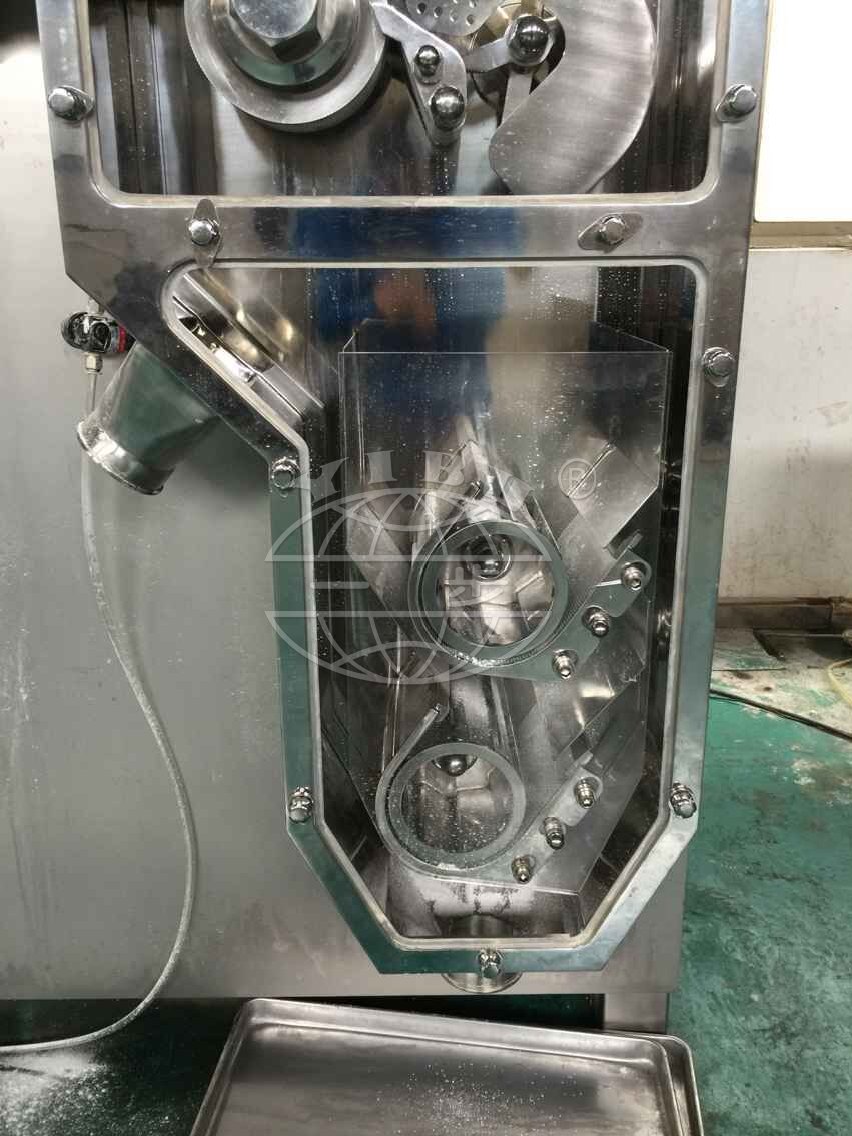

5.Two-grade granulating system can ensure the machine produce the required granule.

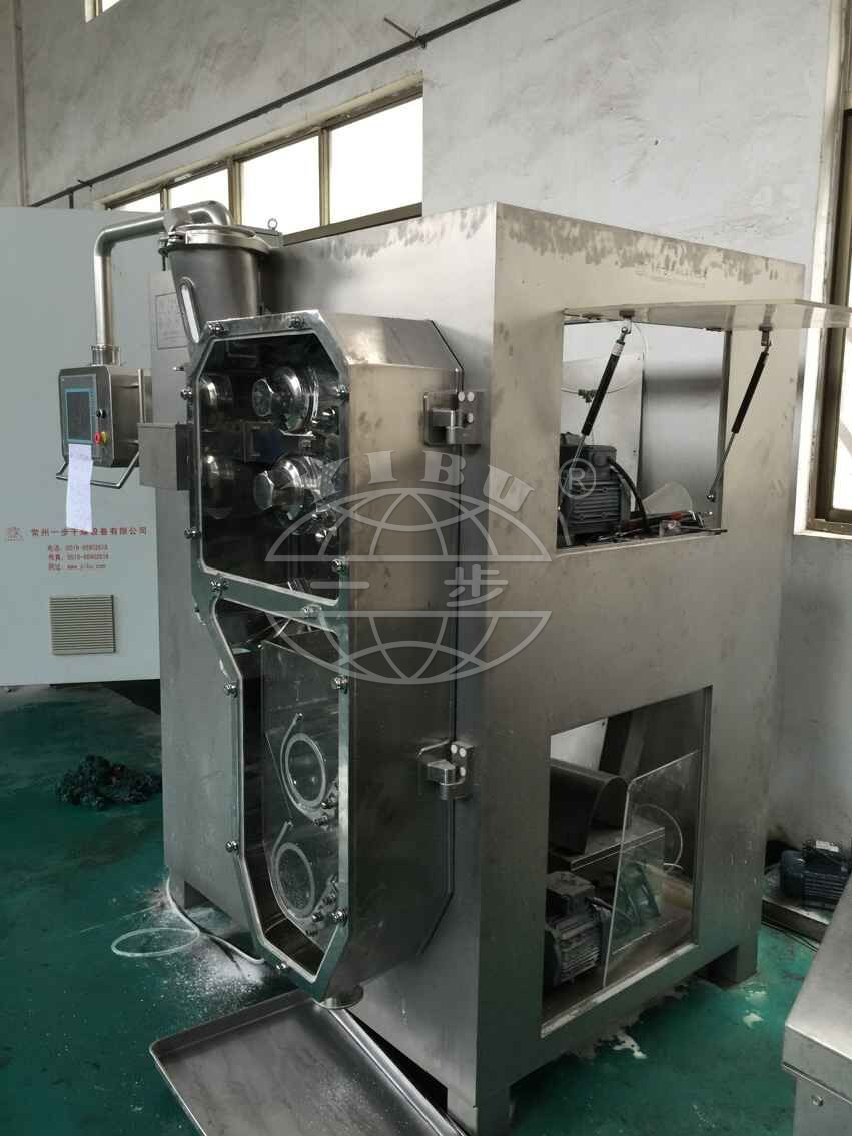

6.The equipment adopts visual design, it is convenient for the operator to observe, maintain the machine

7.PLC control, POD display, easy operation.

8.Meet the requirement of GMP.



Process  flow

After mixing , the well-mixed powder enter into the feeding material silo from the top feeding port .by the transfer device , the well-mixed powder is delivered into the extruding device .by the force of two pressure extruding gear , the powder material become into the thin flake . Through the two-grade milling system ,it makes the thin flake material into the required granule ,and then finishing the granulating process.



Application

LGS series Roller Compactor (dry granulator ) is widely used for material granulating in pharmaceutical industry, foodstuff industry and chemical industry, especially for the material which is easy to decompose or agglomerate once they met moisture  and heat . The machine is in compact structure, simple operation, easy dismantling and cleaning. In the pharmaceutical industry, the material from roller compactor (dry granule) can be tablet-compressing or capsule-filling directly.

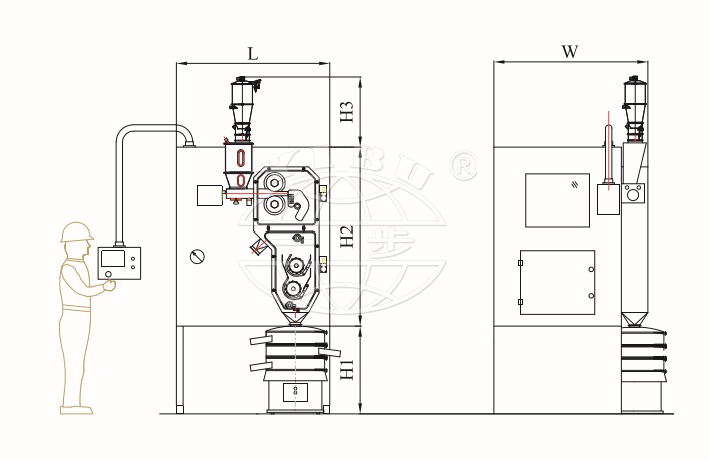

Overall drawing

Technical parameters

model   Item		LG-40	LG-70	LG-100	LG-150	LG-200	LG-250	LG-300
The maximum capacity （kg/h）		40	70	100	150	200	250	300
Fineness of the particles(mesh)		10~30mesh
Total  power for the equipment （kW）		6.87	9.52	12.97	14.97	14.97	21	21
Overall dimensions （mm）	L	900	1100	1450	1450	1450	1500	1500
	W	800	1000	1450	1500	1550	1600	1650
	H1	800 (based on customer request)
	H2	1200	1400	1600	1600	1600	1800	1800
	H3	100(based on customer request )
Weight （KG）		500	600	1000	1200	1350	1800	2000

•
