KZL Series High Speed Grinding granulator

Keywords:
Category: Granulator
Product IntroductionLess heat and dust in working processThe fixed screen is made of stainless steel and it can not be damaged easilyIt can process adhesive, glue, hot and wet raw materials. Features1.MODULARITY – A distinctly avant-garde, modu
Order

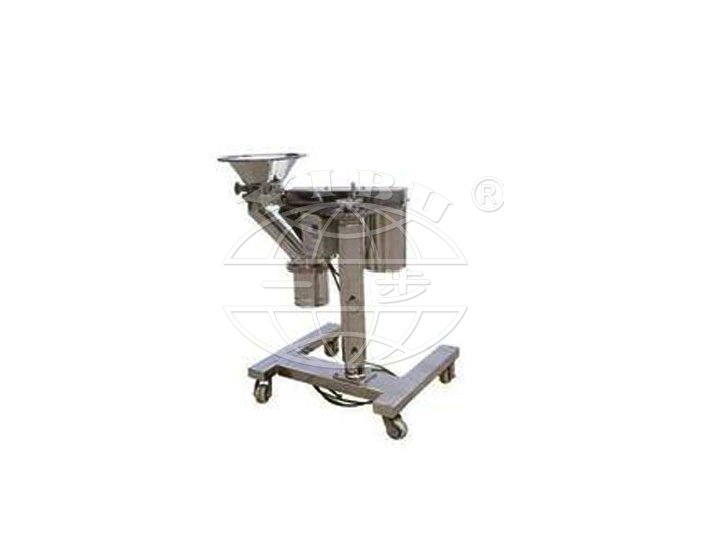

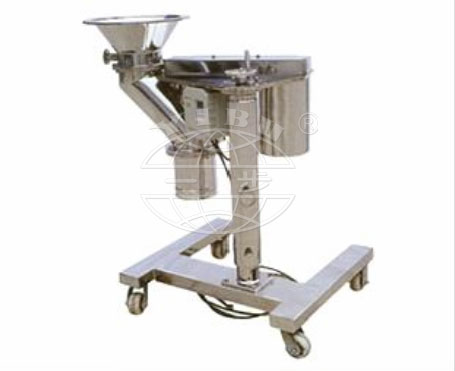

Detail Picture

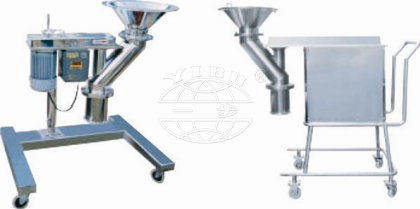

KZL Series High Speed Grinding granulator

Product Introduction

  1. Less heat and dust in working process
  2. The fixed screen is made of stainless steel and it can not be damaged easily
  3. It can process adhesive, glue, hot and wet raw materials.




Features

1.MODULARITY – A distinctly avant-garde, modular concept: Multi-drive allows you to alternate, depending on your production requirements, between 5 milling heads for size-specific crushing, fine grinding, de-agglomeration, or controlled sifting.
2.FLEXIBILITY – Incomparable versatility: Multi-drive allows you to adapt your milling platform easily and quickly, to suit your current or future production requirements, regardless of your manufacturing environment or production site.


Application

  • Make dry or wet granule uniform
  • Crush and granulate blocks;
  • Make granule from wet material;
  • Crush heat sensitivity raw materials
Special note: Not all materials in the above scope can be milled by this equipment. Please make a trial before bulk production.




Technical Parameters


Spec

100

180

300

State diameter mm

100

180

300

State length mm

96

179

305

Productive capacity Kg/h

20-150

100-1500

500-2500

Power Kw

0.75

1.5

4

Speed rpm

180-1400

175-1400

200-1400
