SZ Series Triple -effect multi-Function Evaporator
Keywords:
Category: Evaporator
Features This concentrator is suitable for concentrating the liquid material such as Chinese herbal extract ,western medicine ,glucose, starch , gourmet ,foodstuffs ,milk product and chemical product,especially suitable for heat…
Detail Picture

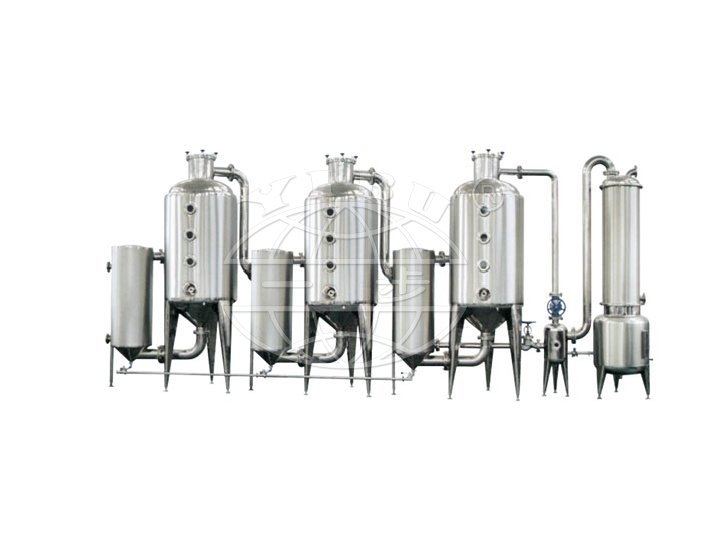

SZ Series Triple -effect multi-Function Evaporator
Features
This concentrator is suitable for concentrating the liquid material such as Chinese herbal extract ,western medicine ,glucose, starch , gourmet ,foodstuffs ,milk product and chemical product,especially suitable for heat sensitive material for their vacuum concentration under the low temperature .
Applications- This equipment adopts the principle of tubular circulation out-heating working principle to keep the short heating time of materials ,rapid evaporation speed ,large concentration ratio ,so as to keep the raw -effect of materials effectively .
- Steam energy will be well saved 70% than single-effect evaporator . The materials are evaporated&concentrated under sealed state which are clean and comfortable .Besides,it is equipped with special foam-removing device to prevent the material running phenomenon .
- All the parts contact with material are made of stainless steel and be polished . The equipment has the properties of good corrosion-proof,easy to clean in accordance with requirements of pharmacy ,food hygiene. It can be matched with PC control system . It is easy to operate with stable effects .
Technical parameters
|
Spec |
Water Evaporation capacity |
Heat exchanging area |
Condensing area |
Evaporating temperature |
Vacuum degree |
Overall dimension LxWxH(m) |
||||
|
First effect |
Second effect |
Third effect |
First effect |
Second effect |
Third effect |
|||||
|
SZ-500 |
500 |
15 |
7.5 |
85 |
75 |
60 |
0.02 |
0.06 |
0.08 |
5.9x1.25x2.49 |
|
SZ-1000 |
1000 |
30 |
15 |
85 |
75 |
60 |
0.02 |
0.06 |
0.08 |
6.8x1.45x3.5 |
|
SZ-2000 |
2000 |
60 |
30 |
85 |
75 |
60 |
0.02 |
0.06 |
0.08 |
9.3x1.8x4.2 |
-
SZ Series Triple -effect multi-Function Evaporator
