DZ Series Single-Effect External Circulation Evaporator
Keywords:
Category: Evaporator
Features This equipment is consists of tubular external heater,vacuum evaporator and auxiliary device . It features as bellow: 1. Short heating time 2.rapid evaporation speed and can keep the effectiveness of thermos-sensitive …

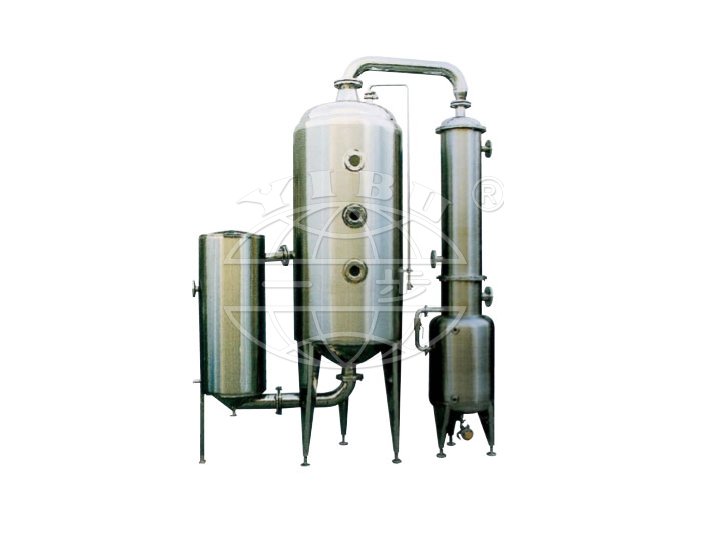

Detail Picture
DZ Series Single-Effect External Circulation Evaporator
Features
This equipment is consists of tubular external heater,vacuum evaporator and auxiliary device . It features as bellow: 1. Short heating time 2.rapid evaporation speed and can keep the effectiveness of thermos-sensitive material well .
It adopts foam-removing with two -grade and can reduce the loss of feed liquid greatly .
Simple structure ,easy cleaning .
Large Concentration radtio ,the largest could be 1.35 g/cm3.
The parts touched with materials are made of good quality of stainless steel,which meet the heath requirement of pharmacy and food .
Applications
This equipment is suitable for evaporation process of liquid materials in the industries of pharmacy ,food ,chemical industry ,light industry,etc.
Technical parameters
|
item
Spec
|
DZ-350 |
DZ-500 |
DZ-700 |
DZ-1000 |
DZ-1500 |
DZ-2000
|
|
Evaporation capacity (kg/h) |
350 |
500 |
700 |
1000 |
1500 |
2000 |
|
Steam pressure(MPa) |
0.25 |
0.25 |
0.25 |
0.25 |
0.25 |
0.25 |
|
Heating Area (M2) |
13 |
16 |
20 |
30 |
50 |
70 |
|
Condensing Area(M2) |
7 |
8 |
10.5 |
18 |
25 |
25 |
|
Cooling Area(M2) |
1.5 |
2 |
3 |
5 |
7 |
10 |
|
Vacuum degree(MPa) |
0.08 |
0.08 |
0.08 |
0.08 |
0.08 |
0.08 |
-
DZSeries Single-Effect External Circulation Evaporator
