JG Series Air Stream Dryer



Application
This dryer is suitable for the raw materials that contains high moisture and appear paste and other raw materials that can not be dried with other drying methods.For example,co-polymer of vinyl acetate and chlorothymol,cellulose acetate,catalyst,C.M.C.,CT-1 resin,burnt plaster,electrolytic manganese dioxide,anthraquinone ammonium sulphonate,fluor,diatomaceous,silica gel catalyst,born powder,potassium perchlorate sulfonamide ,synthesis resin,active gluten,active argil,chemical filter cake,titanium dioxide,decanoic acid,copper sulphate,Aluminum sulphate,sodium sulphate,calcium phosphate,starch,dyestuff,calcium citrate,coal earth,cement,aluminum hydroxide, barium hydroxide,slurry of calcium carbonate,residue of sludge,organic compounds,ferric oxide,organic fuel,maize albumen feed,mica powder,medicine,dyestuff,paper pulp of potassium prodromata,lees residue and so on.



Principle
Air stream dryer can remove moisture from the surface of raw materials of granules or powder that are easy to dehydrate.Under the air stream drying process;the quality of finished products can be controlled to the best because of raw material stays a short time.The dryer of our factory is developed on the basis of basic spec to add a reinforced device of steeples speed exchange.When the humidity raw material is fed through screw,it is mixed with air fully and is broken and pushed by rotating knives,the surface of raw material is broken to fine granule.It moves to the outlet at the same time of drying.Finally it enters into drying pipe under the absorbing of air force,it is dried further there.The humid and heavy granule that is not absorbed by air is broken and dried continuously till entering the drying pipe.

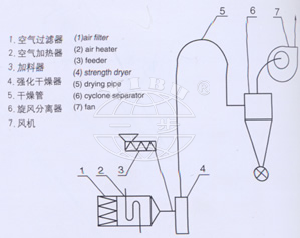

Flow chart

Technical parameters

spec	moisture to be  evaporated(kg/h) (calculated based on the surface moisture)	power(kw)	area to be occupied  (m2)	height (m)
JG 50	50	10	20	9
JG 100	100	20	32	11
JG 200*	200	31	40	11
JG 250	250	32	64	13
JG 500*	500	54	96	13
JG 1000*	1000	135	120	15
JG 1500*	1500	175	200	16

•
