ZS Series Round Shape Vibrating Sifter (Round Shape vibrating screen,Round Shape Vibrating sieve)

Keywords:
Category: Sifter (sieve)
Product DescriptionThe machine consist of hopper, vibrating chamber, couple and motor. There are eccentric wheel, rubber software, main shaft and shaft-bearing in the vibration chamber…
Order

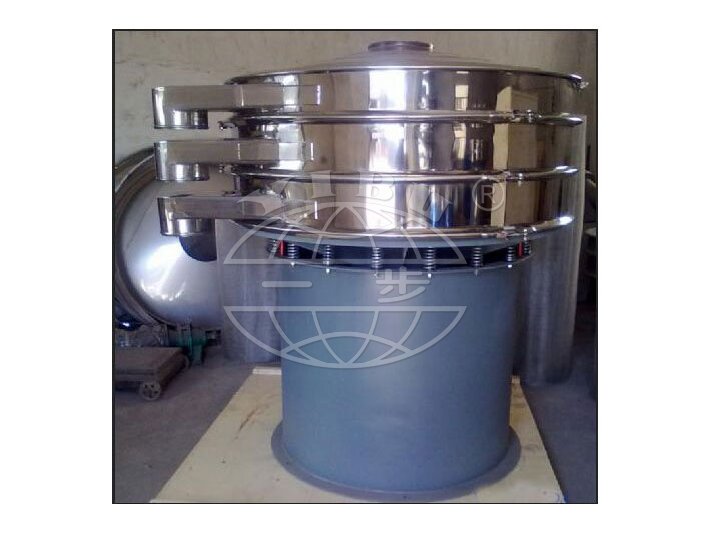

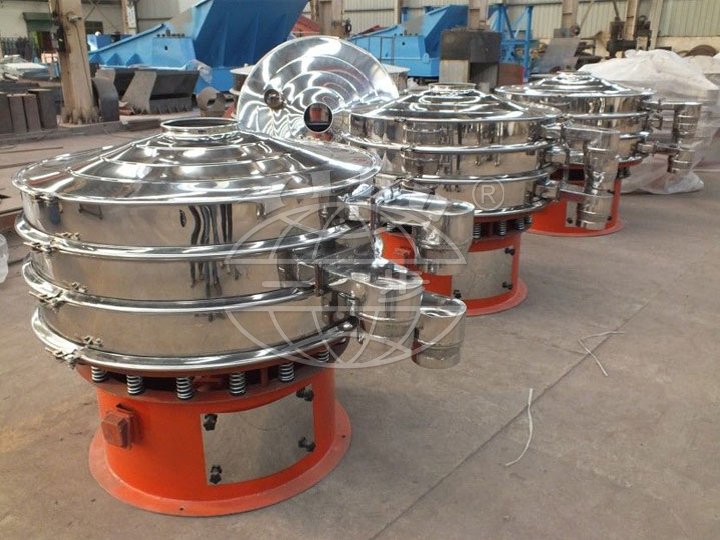

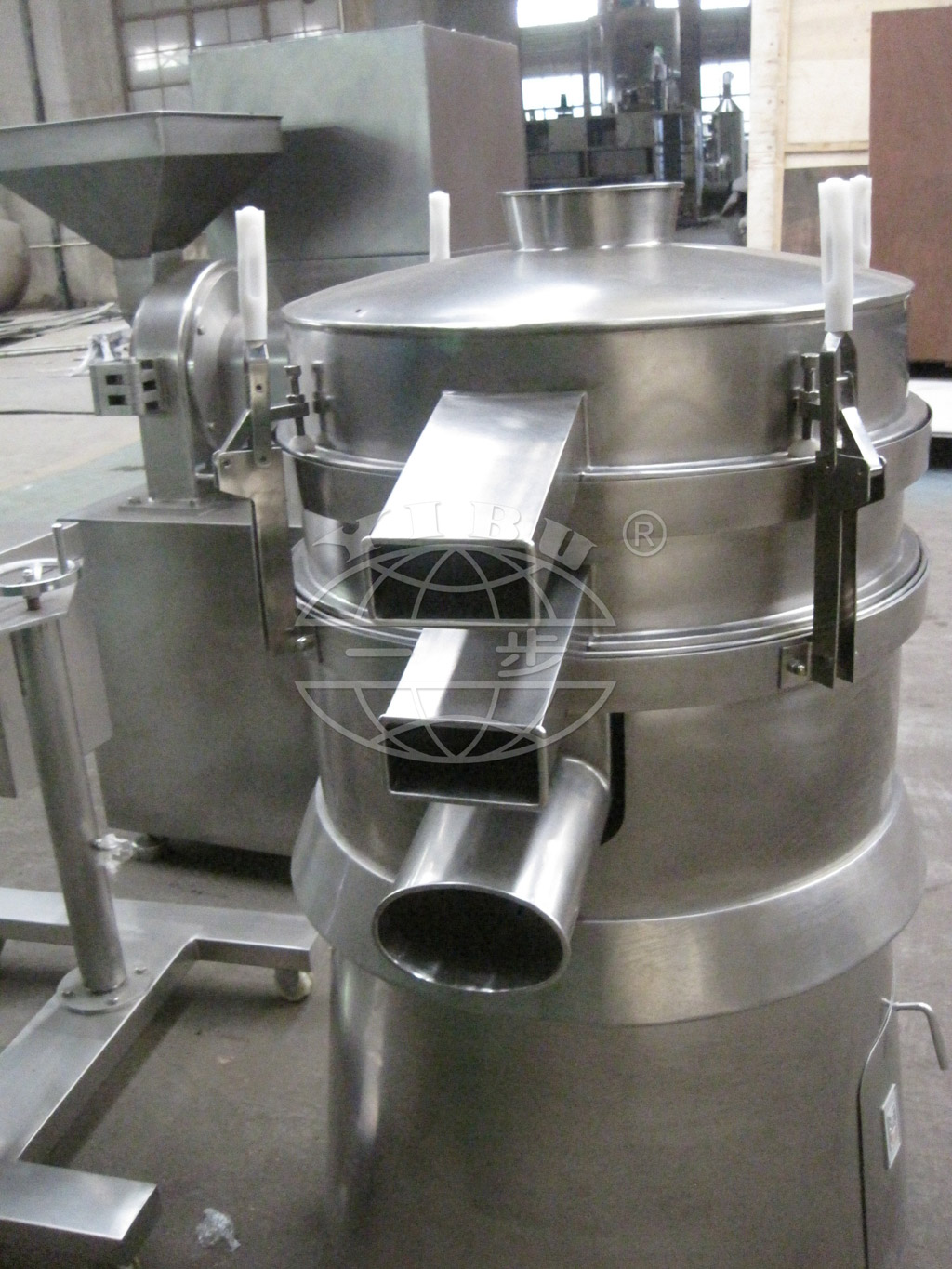

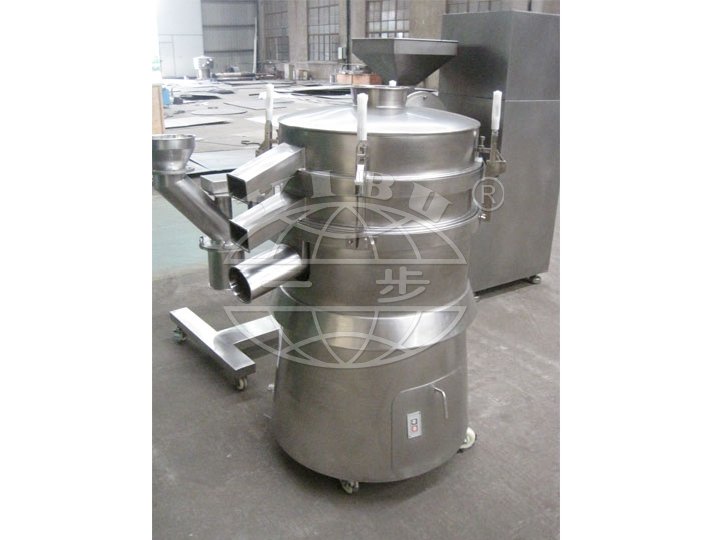

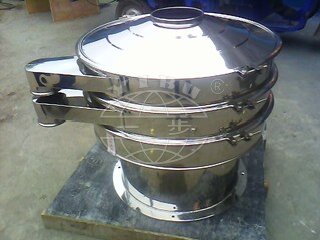

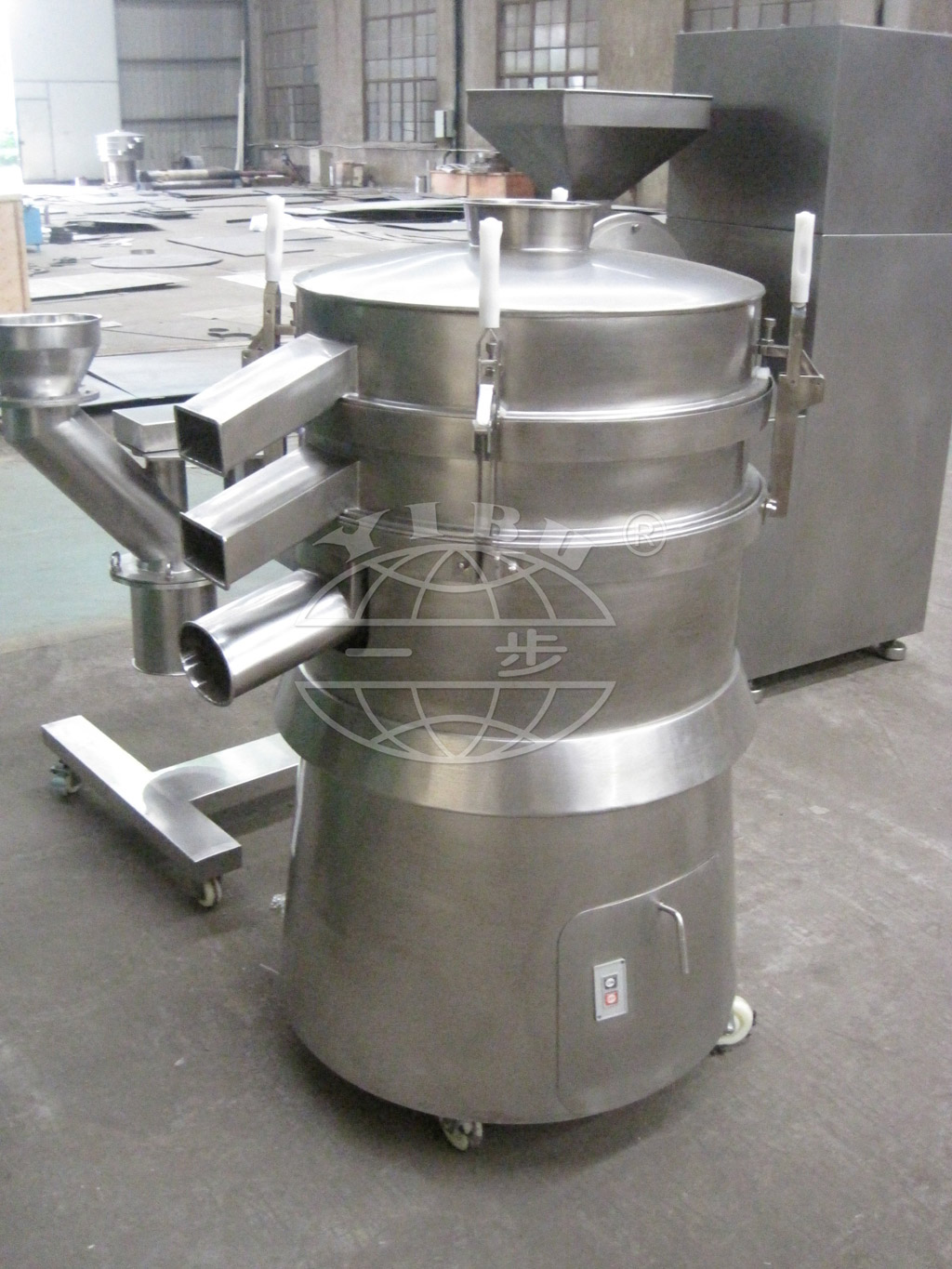

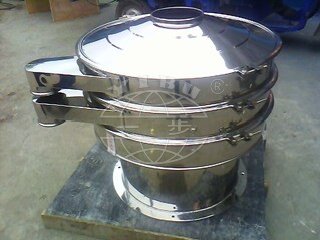

Detail Picture

ZS Series Round Shape Vibrating Sifter (Round  Shape vibrating screen and Round  Shape Vibrating Sieve)



Product Description
The machine consist of hopper, vibrating chamber, couple and motor. There are eccentric wheel, rubber software, main shaft and shaft-bearing in the vibration chamber. The adjustable eccentric hammer is driven to the center line through the motor, cause centrifuged force under the state of unbalance and so that the materials from regular eddy. The amplitude of the hammer may be adjusted according to the property of material and
the mesh screen.It is compact in structure, small in volume, thightness dust free, noise-free, high output,low in energy consumption, easy to move and easy to maintain.



Structure
With Bottom ,vibrating motor ,mesh, clamps ,sealing strips(rubber or gel silica), cover




Characters and function

  • It absorbs the advanced technology from domestic and overseas ,and adopts senior processing technique.
  • It is a kind of high-precision screening and filtering machine.
  • The vertical vibrating motor is the vibrating power of machine .
  • There are two eccentric blocks on the motor’s upper and down .
  • The eccentric blocks make cubic element movement (horizontal ,up-down,and tilting)
  • By changing the eccentric block’s included angle ( the upper and down), the track that material moves on the mesh ,will be changed so that the screening target will be realized .
  • With a small volume and the light weight , it is easy to install and move .
  • With a special mesh frame design and a long life for mesh ,and it is easy to change and clean mesh
  • Different particles are graded educatio automatically ,so the auto-operation can be realized .
  • The outlet’s location can be adjusted too anywhere you need , it is very easy to form producing line .
  • Low consumption and noise ,environmental -friendly and energy conservation



Usage

  1. Chemical industry : Resin powder , paint , detergent powder ,paint ,Soda ash ,lemon Powder ,rubber ,plastic and so on .
  2. Abrasives ,Ceramics industry : alumina, Quartz sand ,mud ,spray soil particles .
  3. The food industry : sugar ,salt ,alkali ,monosodium glutamate ,milk powder ,milk ,yeast ,fruit juice ,soy sauce ,vinegar.
  4. The paper industry : Coating paint ,clay ,mud , black and white liquid ,waste water recycling .
  5. Metallurgical industry: titanium dioxide ,zinc oxide ,magnetic materials ,metal powders ,electrode powder .
  6. The pharmaceutical industry : the powder , inliquid , western medicine powder ,western medicine liquid,Chinese and Western medicine particles .
  7. Environmental Protection : garbage ,human and animal urine ,waste oil ,food ,waste water ,waste water processing .

Technical Parameters

spec

ZS-350

ZS-515

ZS-650

ZS-800

ZS-1000

ZS-1500

capacity kg

40-500

60-600

80-800

150-1200

300-2000

350-2800

meshes

12-200

12-200

12-200

12-200

5-325

5-325

power kw

0.55

0.55

0.55

0.75

1.5

2.2

 speed rpm

1380

1370

1370

1500

1500

1500

overall dimension

540×540×1060

710×710×1290

880×880×1350

1000×1000×1400

1100×1100×1200

1600×1600×1200
