LJG Series Vertical Stirring Vacuum Dryer
Keywords:
Category: Vacuum dryer
Description The vertical stirring vacuum dryer is a kind of vertical vacuum dryer worked by batch .he machine mainly consists of the barrel with the jacket …

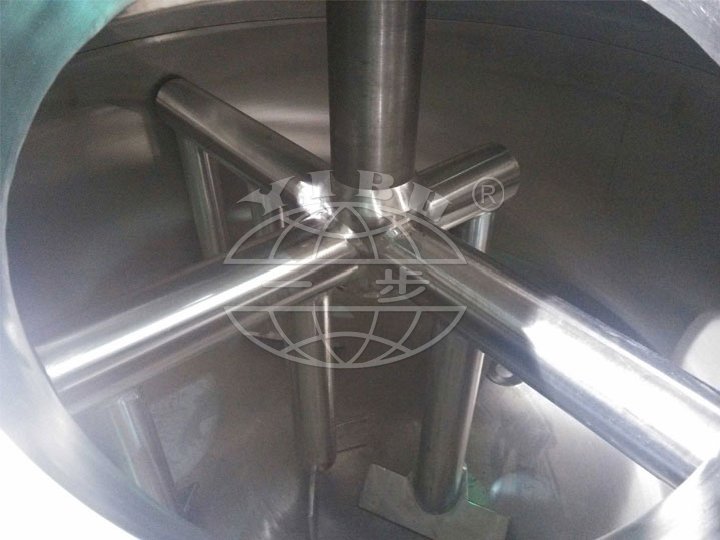

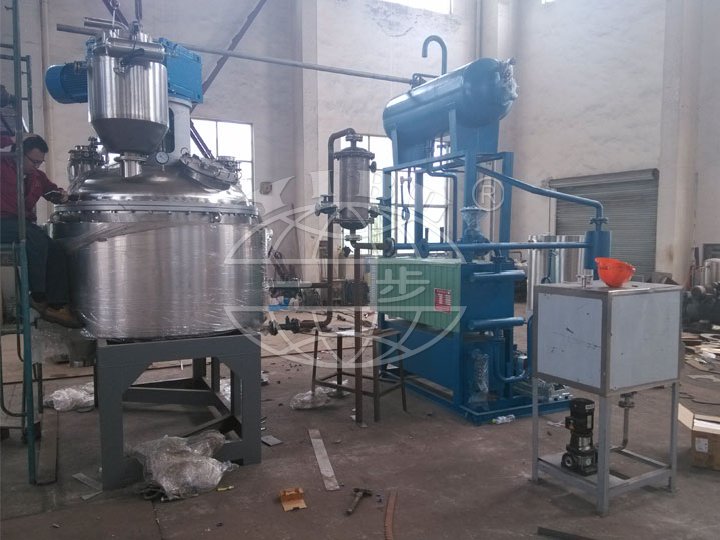

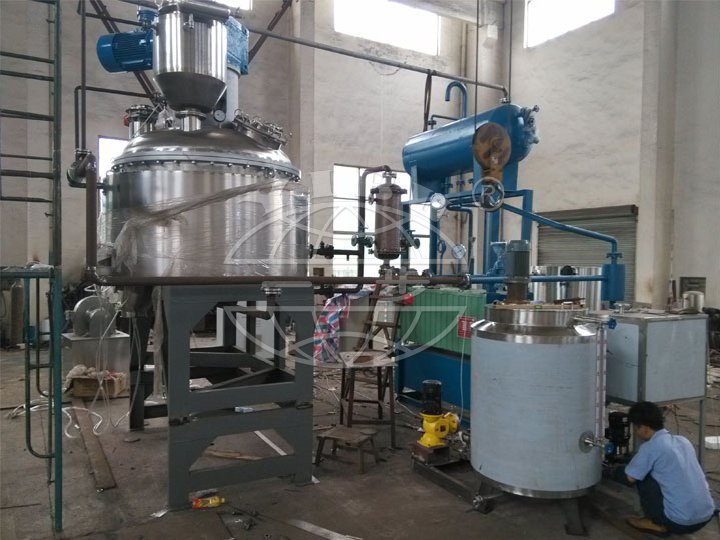

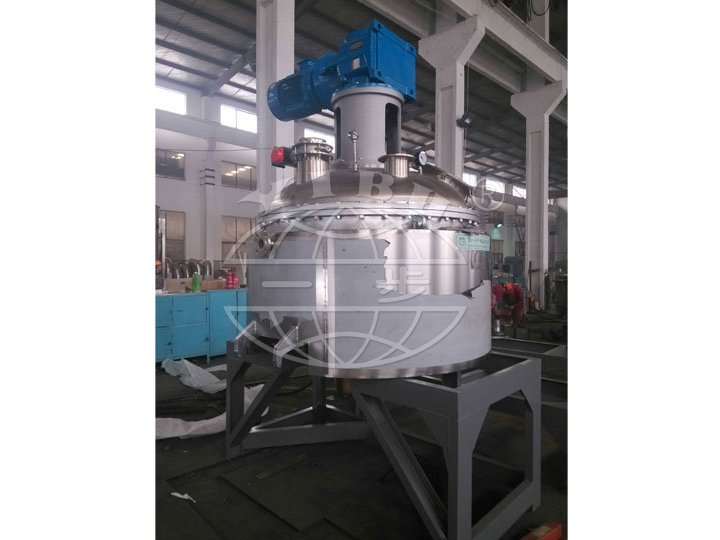

Detail Picture
LJG Series Vertical Stirring Vacuum Dryer
Description
The vertical stirring vacuum dryer is a kind of vertical vacuum dryer worked by batch .he machine mainly consists of the barrel with the jacket , stirring impeller ,drive system and vacuum system(if the solvent needs recovery , it should equip with the condenser device ). The wet material in the cylinder are stirred continuously by the stirring impeller during the working . The heat transferring happened between the material and the inner wall of the cylinder and make the moisture from the material is evaporated ,and wet air is pumped outside by the vacuum system.
Features
The design for this machine is novel ,the structure is compact , the control is simple , the drying is uniform , energy consumption is low, the application is very wide . It is applied for slow heating and drying ,cooling and solvent recovery of the crystalline and amorphous granular, powder and paste material or the thermal sensitive material .
Features
Advantages
Our company specially designed this equipment for processing the slurry material , high viscosity and high-moisture material ,meanwhile , the solvent from the material needs to recovery . We have already apply for the patent for this equipment .
Main advantages: large production per batch, high vacuum degree, very convenient to the maintenance , compared with the hollow paddle dryer , longer working life, sealing better, more convenient discharging.

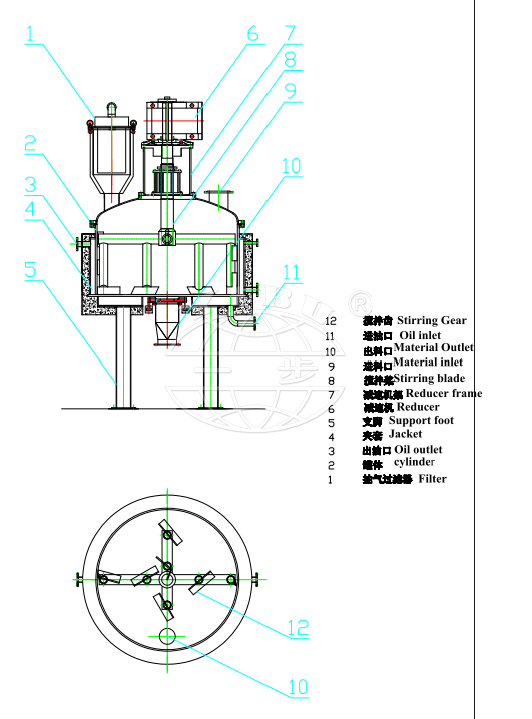

Flow Chart
Technical parameters
|
Spec |
LJG-750 |
LJG-1000 |
LJG-1500 |
|
Capacity(KG/batch) |
200-300 |
300-400 |
400-600 |
|
Stirring motor power(KW) |
11 |
15 |
18.5 |
|
Jacket pressurization(Mpa) |
0.3 |
0.3 |
0.3 |
-
